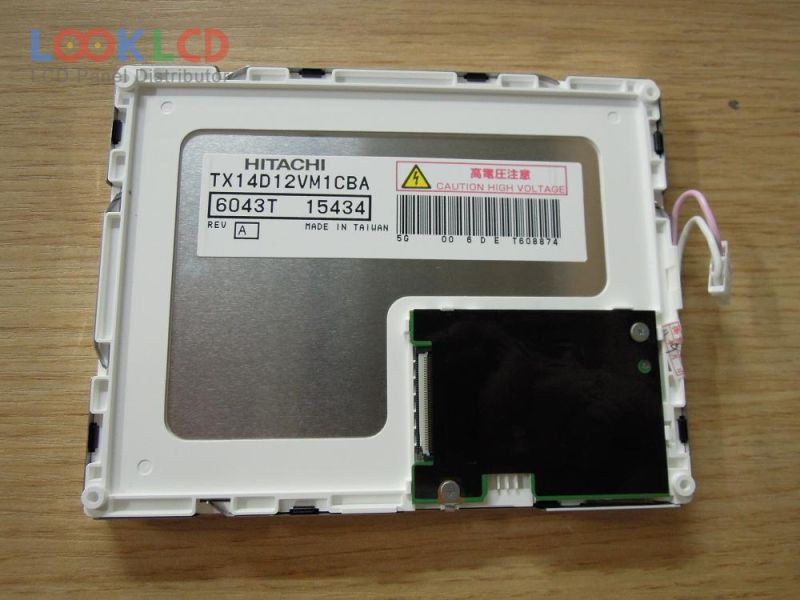

| Broj dijela | TX14D12VM1CBA |
| Marka | KOE |
| Veličina | 5.7 |
| Primjena | IA |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 350:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | HITACHI |
| panelni model | TX14D12VM1CBA |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.7 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 115.2×86.4 mm |
| obris | 131×102.2 mm |
| površinski | |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 45 (Typ.)(Tr+Td) |
| kut gledanja | 65/65/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | CMOS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.)(VDD) |
| primjena | IA |
