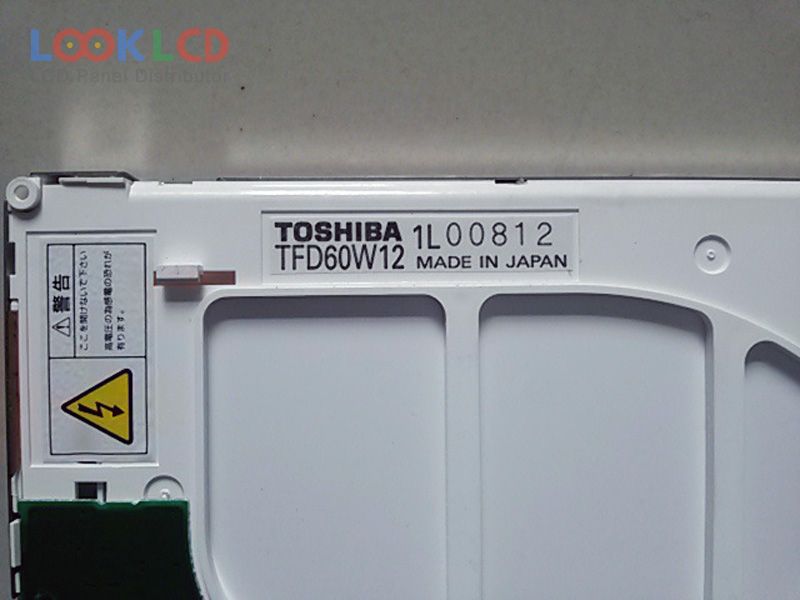

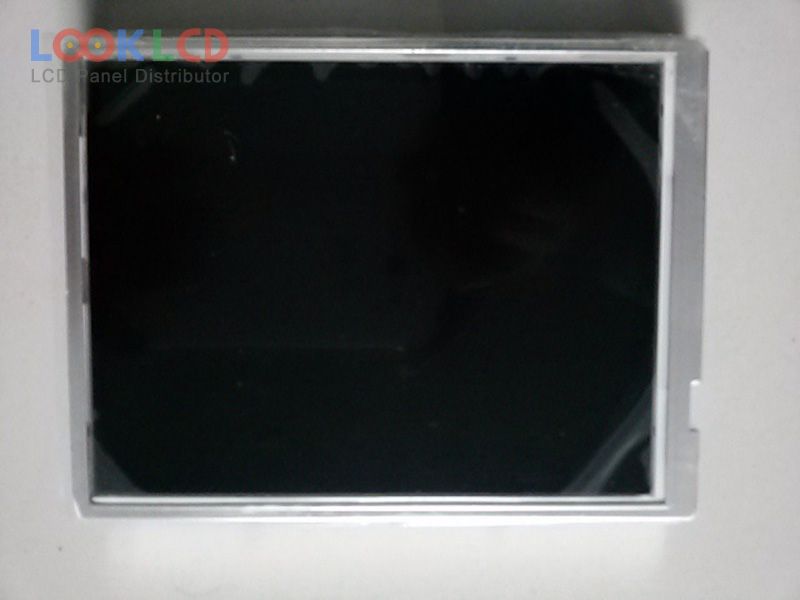

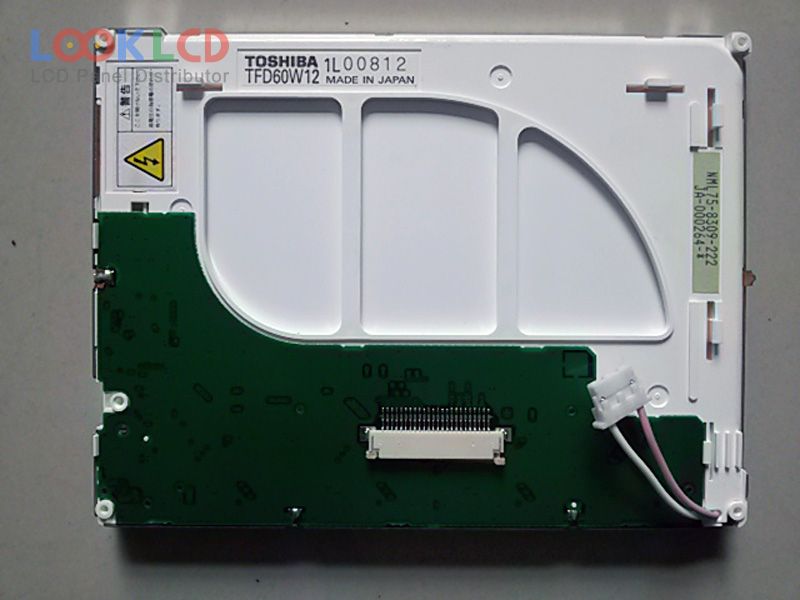

| Broj dijela | TFD60W12 |
| Marka | TOSHIBA |
| Veličina | 6.0 |
| Primjena | IA |
| Rezolucija | 320×234 |
| Sastav | LCM |
| Svjetlina | 280 |
| CR | 80:1 |
| Boje | Full color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | TOSHIBA |
| panelni model | TFD60W12 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.0 inch |
| rezolucija | 320(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 121.92×89.154 mm |
| obris | 144×109.4 mm |
| površinski | |
| svjetlina | 280 cd/m² (Typ.) |
| omjer kontrasta | 80:1 (Typ.) |
| boje prikaza | Full color |
| vrijeme odziva | 70/40 (Max.)(Tr/Td) |
| kut gledanja | 45/45/45/15 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | TFT Specific Analog RGB, 24 pins |
| ulazni napon | 5.0/13.0/23.0/-5.0V (Typ.)(VDD/VBB/VGG/VEE) |
| primjena | IA |
