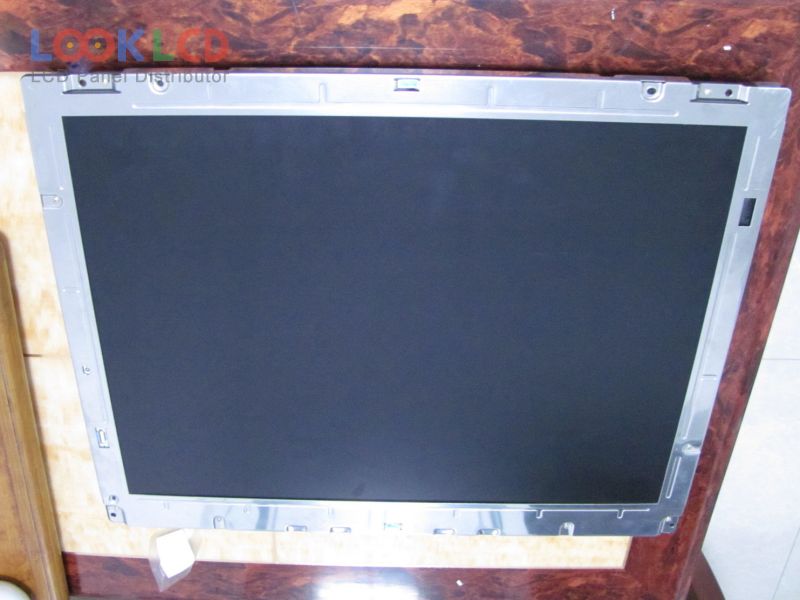

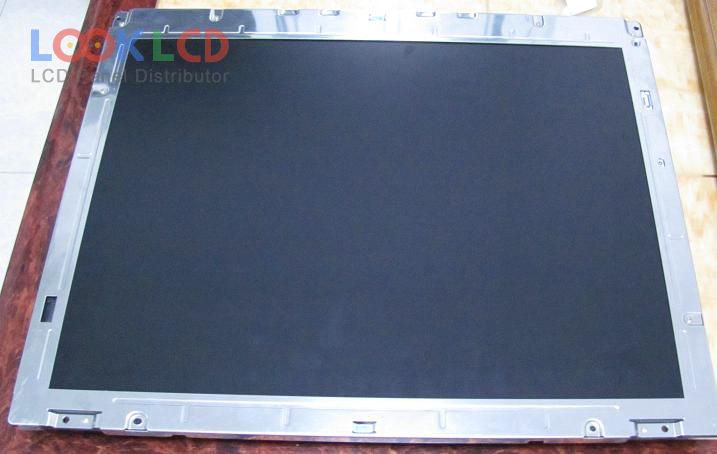

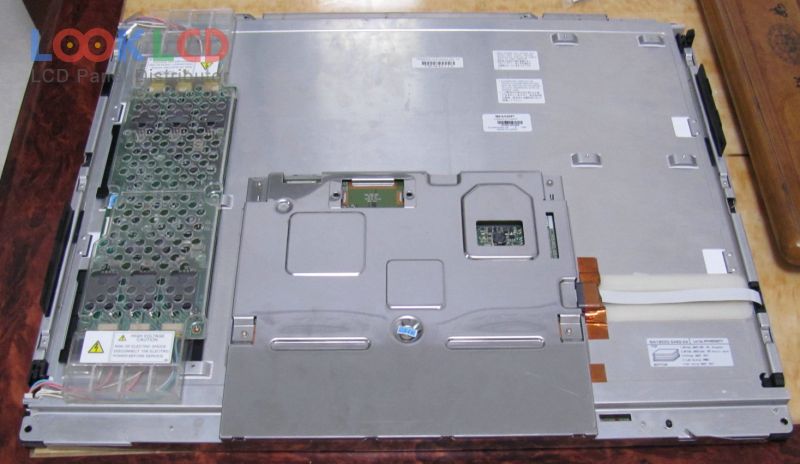

| Broj dijela | LQ231U1LW01 |
| Marka | SHARP |
| Veličina | 23.1 |
| Primjena | IA |
| Rezolucija | 1600×1200 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | OpenLDI |
| marka panela | SHARP |
| panelni model | LQ231U1LW01 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 23.1 inch |
| rezolucija | 1600(RGB)×1200 , UXGA |
| način prikaza | MVA, Normally Black, Transmissive |
| aktivno područje | 470.4×352.8 mm |
| obris | 530×432.8×33.5 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G) |
| kut gledanja | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 6 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | OpenLDI, 31 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | IA |
