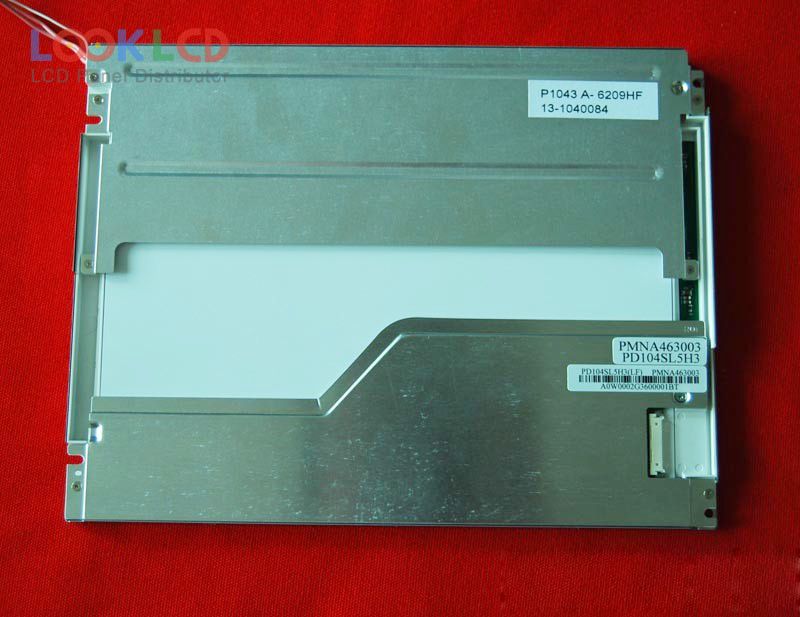

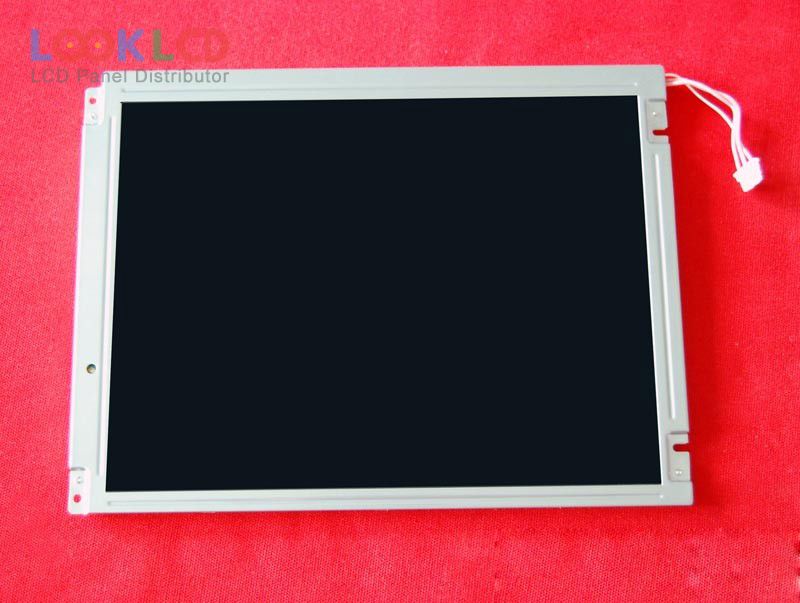

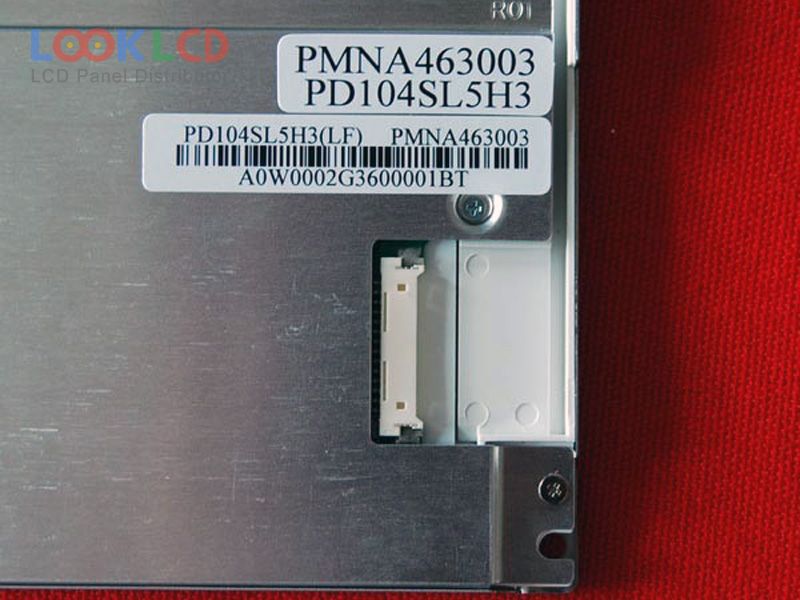

| Broj dijela | PD104SL5 |
| Marka | E Ink |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 800×600 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | PVI |
| panelni model | PD104SL5 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| obris | 243×185.1×10.8 mm |
| površinski | Antiglare, Hard coating |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 15/25 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 14 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
