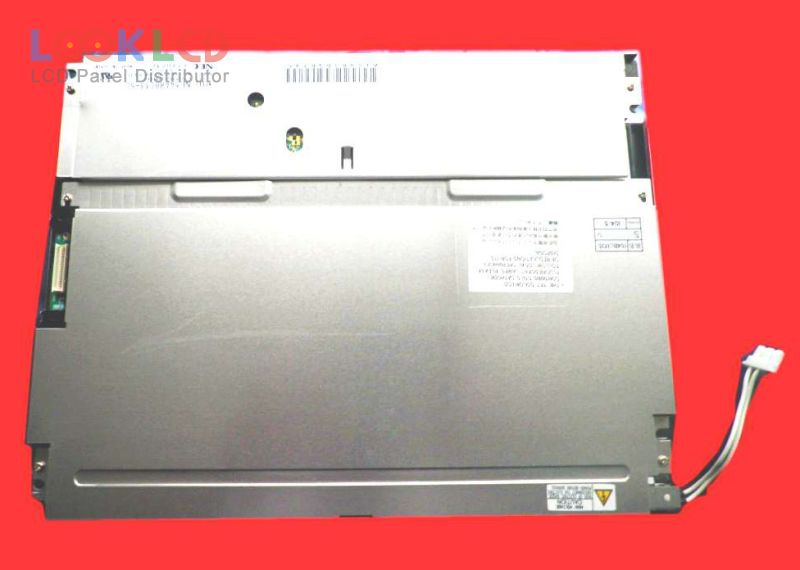

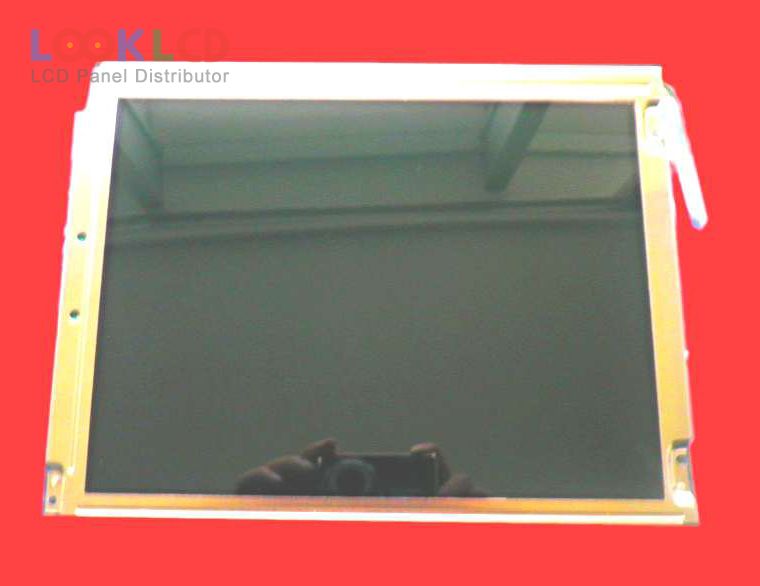

| Broj dijela | NL6448BC33-50 |
| Marka | NLT |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 100:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | NEC |
| panelni model | NL6448BC33-50 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 211.2×158.4 mm |
| obris | 243×185.1×11.5 mm |
| površinski | Clear, Hard coating (2H), Antireflection |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 100:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 5/20 (Typ.)(Tr/Td) |
| kut gledanja | 75/55/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | CMOS (1 ch, 6-bit), 31 pins |
| ulazni napon | 3.3/5.0V (Typ.)(VCC) |
| primjena | IA |
