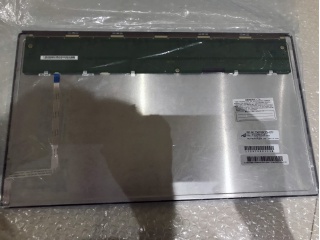

| Broj dijela | NL13676BC25-07F |
| Marka | NLT |
| Veličina | 15.6 |
| Primjena | Industrial Outdoor H |
| Rezolucija | 1366×768 |
| Sastav | a-Si TFT-LCD , LCM |
| Svjetlina | |
| CR | 900:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | 6 |
| Sučelje | LVDS |
| marka panela | NLT |
| veličina ploče | 15.6" |
| rezolucija | 1366(RGB)×768, WXGA, 100PPI |
| područje prikaza | 344.232(W)×193.536(H) mm |
| veličina obrisa | 363.8(W)×215.9(H) ×13.15(D) mm |
| svjetlina | 1250 cd/m² (Typ.) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10) |
| najbolji pogled na | 6 o'clock |
| boje prikaza | 262K/16.7M 60% NTSC |
| frekvencija | 60Hz |
| težina panela | 1.07/1.17Kgs (Typ./Max.) |
| signalno sučelje | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| ulazni napon | 3.3V (Typ.) |
| okoliš | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| panelni model | NL13676BC25-07F |
| vrsta panela | a-Si TFT-LCD , LCM |
| format piksela | RGB Vertical Stripe |
| otvor za okvir | 347.55(W)×196.85(H) mm |
| površinski | Antiglare, Hard coating (3H) |
| omjer kontrasta | 900:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| vrijeme odziva | 3/15 (Typ.)(Tr/Td) |
| tip svjetiljke | 6 strings WLED , 7K hours , Without Driver |
| ekran na dodir | Without |
| primjena | Industrial Outdoor High Brightness |
| B156XW02 V6 | AUO | 15.6 | 1366×768 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156O6-L02 | Innolux | 15.6 | 1600×900 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
