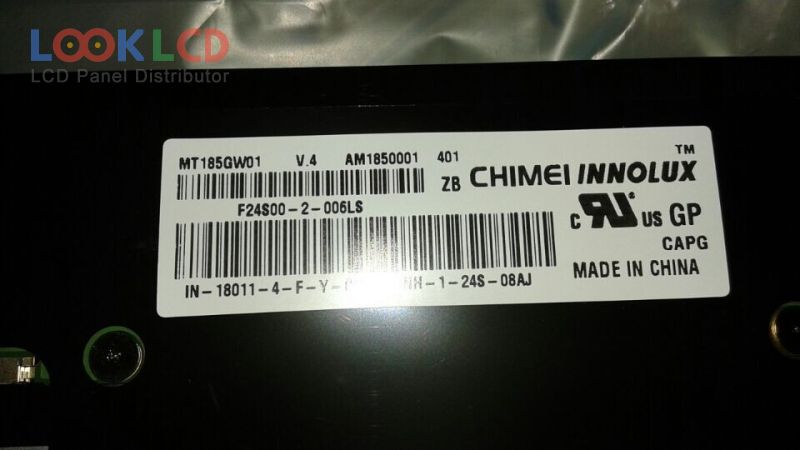

| Broj dijela | MT185GW01 V.4 |
| Marka | Innolux |
| Veličina | 18.5 |
| Primjena | DMPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | MT185GW01 V.4 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 18.5 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 409.8×230.4 mm |
| obris | 430.37×254.6×10.25 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193170% |
| vrijeme odziva | 1.5/3.5 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 14S6PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
