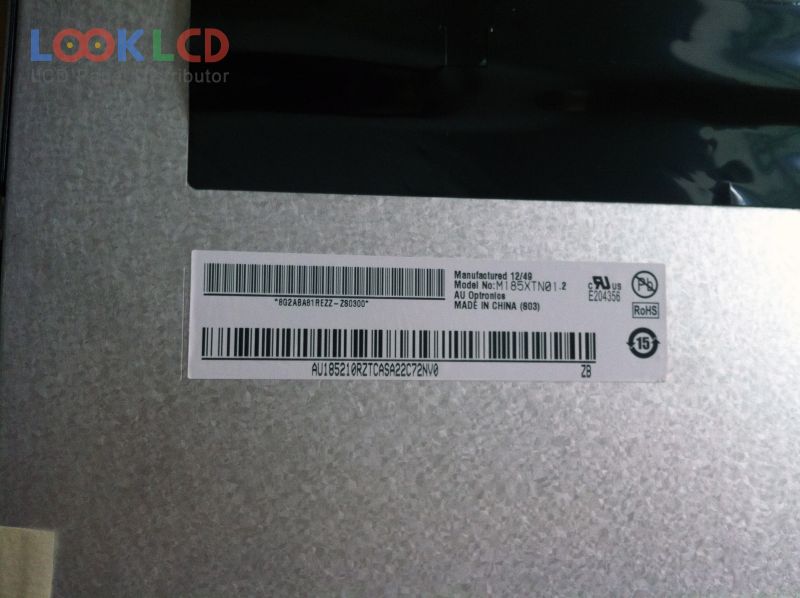

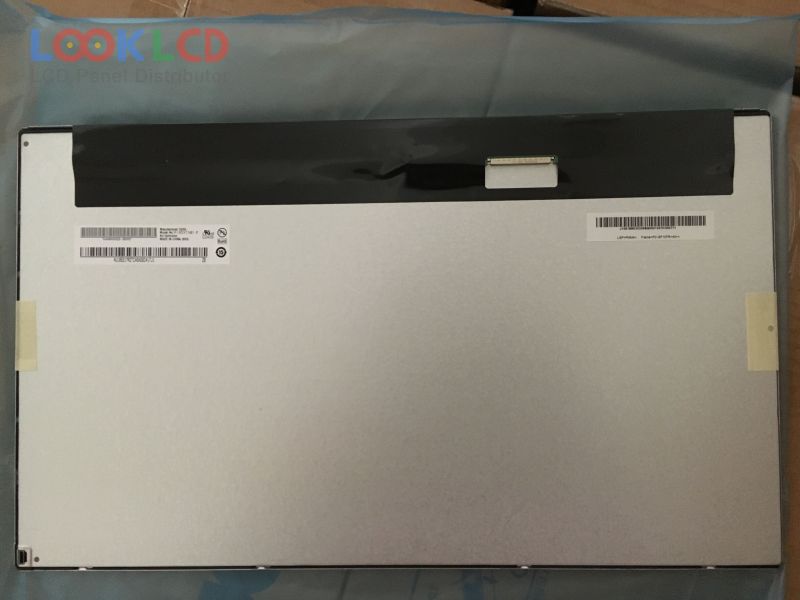

| Broj dijela | M185XTN01.2 |
| Marka | AUO |
| Veličina | 18.5 |
| Primjena | DMPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | M185XTN01.2 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 18.5 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 409.8×230.4 mm |
| obris | 430.4×254.6×10.4 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 3.6/1.4 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S4PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
