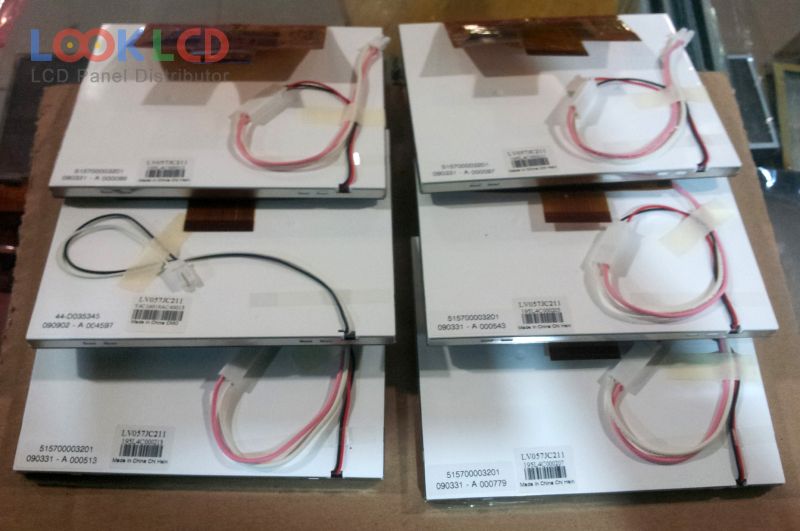

| Broj dijela | LV057JC111 |
| Marka | Innolux |
| Veličina | 5.7 |
| Primjena | GM |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 350:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | ChiHsin |
| panelni model | LV057JC111 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.7 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 115.2×86.4 mm |
| obris | 125×98.8×5.84 mm |
| površinski | Antiglare (Haze 25%), Hard coating |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 15/35 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/60/45 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 7S3PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| ulazni napon | 3.3/8.4/15.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| primjena | GM |
