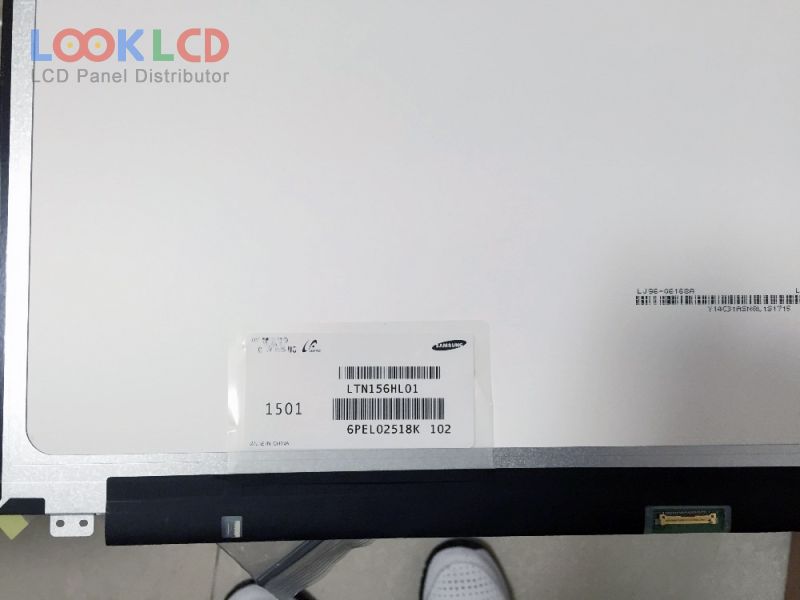

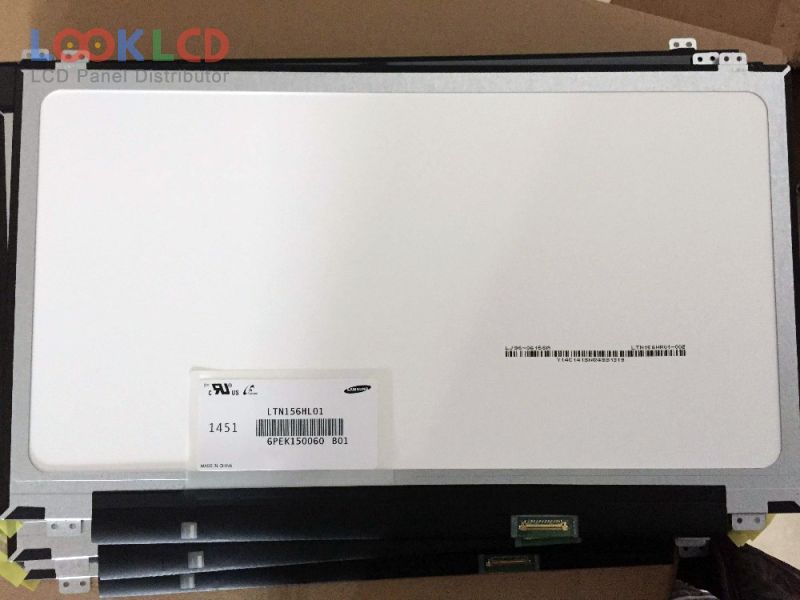

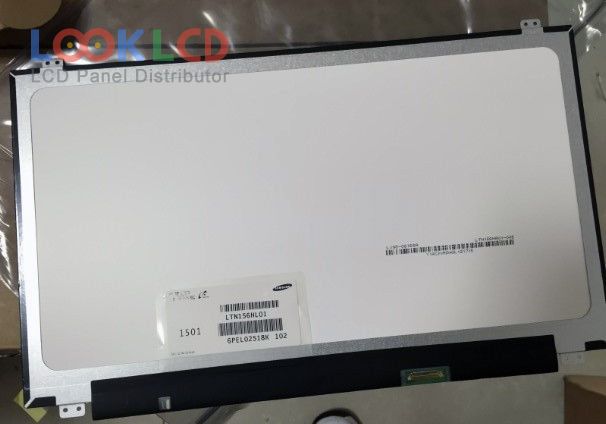

| Broj dijela | LTN156HL01 |
| Marka | Samsung |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | SAMSUNG |
| panelni model | LTN156HL01 18 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno područje | 344.16×193.59 mm |
| obris | 359.5×223.8×3.2 mm |
| stil oblika | Slim (PCBA Flat, Depth ≤3.2mm) |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193172% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 10S5PWLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (2 Lanes), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
