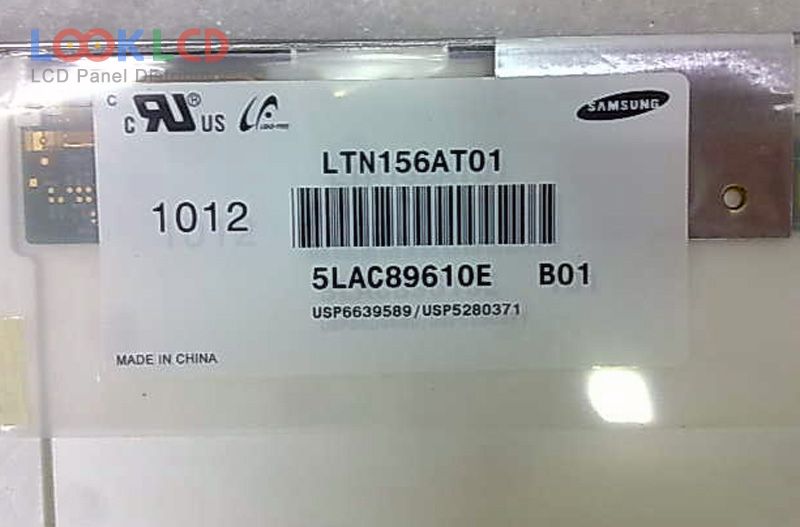

| Broj dijela | LTN156AT01-B01 |
| Marka | Samsung |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN156AT01-B01 10 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.232×193.536 mm |
| obris | 359.3×209.5×6.2 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 25/35 (Typ./Max.)(Tr+Td) |
| kut gledanja | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
