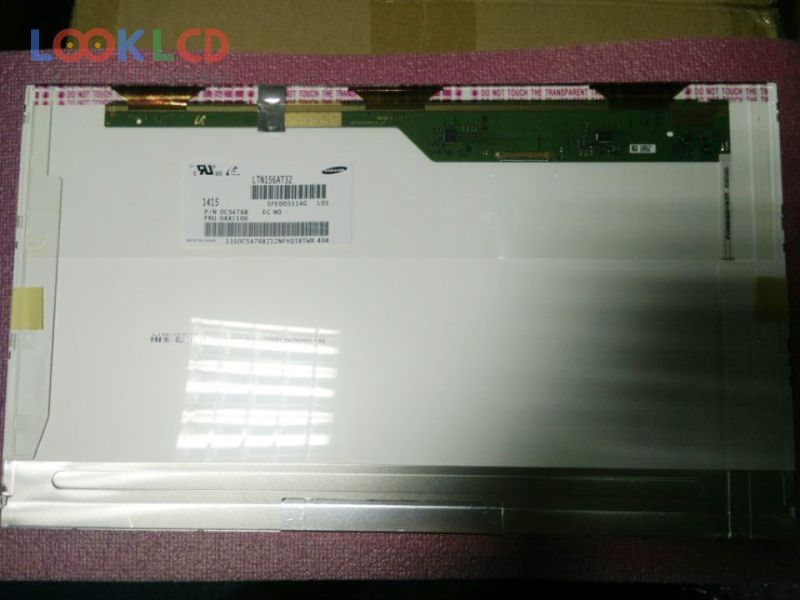

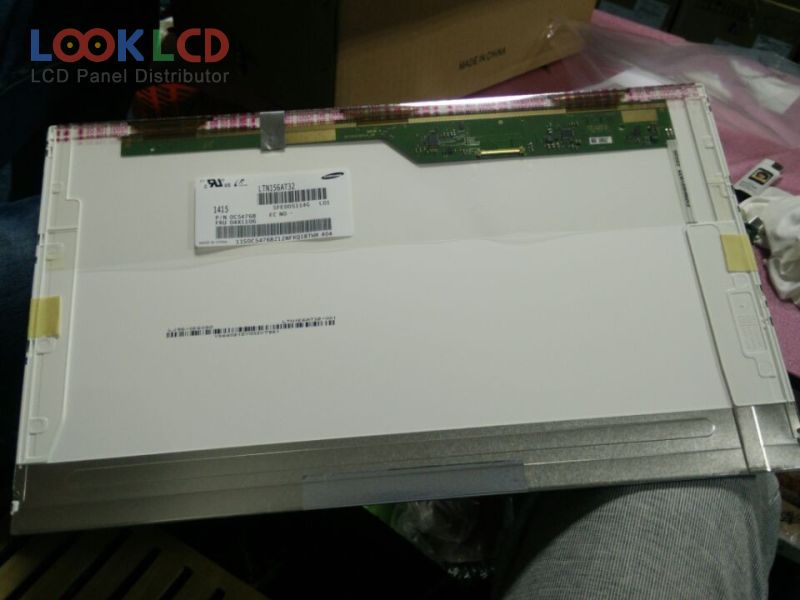

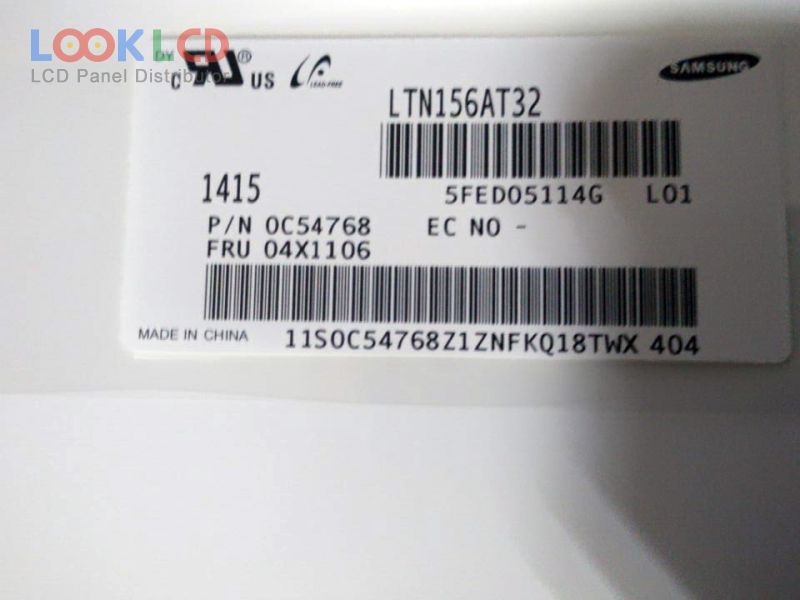

| Broj dijela | LTN156AT32-L01 |
| Marka | Samsung |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN156AT32-L01 61 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.232×193.536 mm |
| obris | 359.3×209.5×5.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4S1PWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-J08 | Samsung | 15.6 | 1366×768 |
| LTN156AT09-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-P02 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT30-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-H01 | Samsung | 15.6 | 1366×768 |
| B170PW06 V2 | AUO | 17.0 | 1440×900 |
| CLAA154WB08A | CPT | 15.4 | 1280×800 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP171WP4-TLB4 | LG Display | 17.1 | 1440×900 |
| LTN154CT02-001 | Samsung | 15.4 | 1920×1200 |
| LTN154X3-L0D | Samsung | 15.4 | 1280×800 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| N150X7-L01 | Innolux | 15.0 | 1024×768 |
| TX38D88VC1GAA | KOE | 15.0 | 1024×768 |
