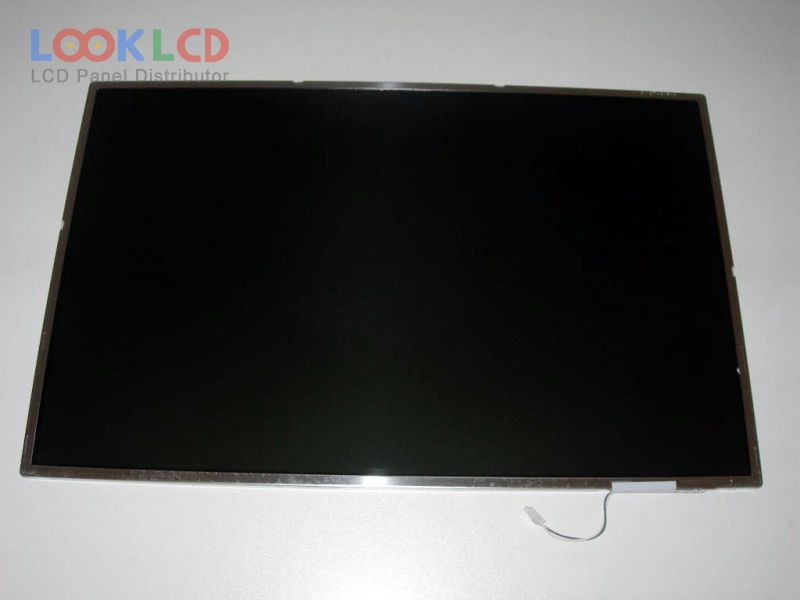

| Broj dijela | LP171WP4-TLB4 |
| Marka | LG Display |
| Veličina | 17.1 |
| Primjena | NBPC |
| Rezolucija | 1440×900 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 350:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG.Philips LCD |
| panelni model | LP171WP4-TLB4 9 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.1 inch |
| rezolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 367.2×229.5 mm |
| obris | 382.2×244.5×6.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (2H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Min.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
