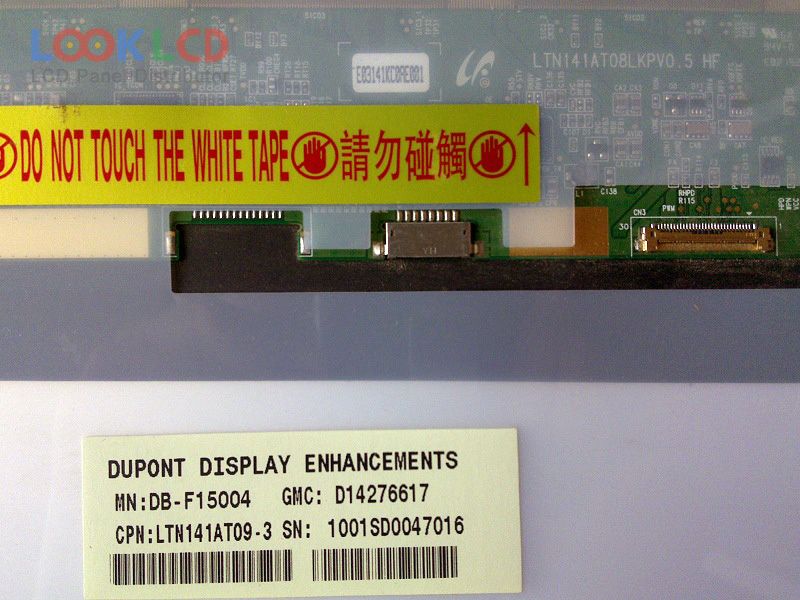

| Broj dijela | LTN141AT09-301 |
| Marka | Samsung |
| Veličina | 14.1 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 730 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | SAMSUNG |
| panelni model | LTN141AT09-301 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 303.36×189.6 mm |
| obris | 319.5×206.5×7.7 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare, Hard coating (7H) |
| svjetlina | 730 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 55/55/45/45 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (1 Lane), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
