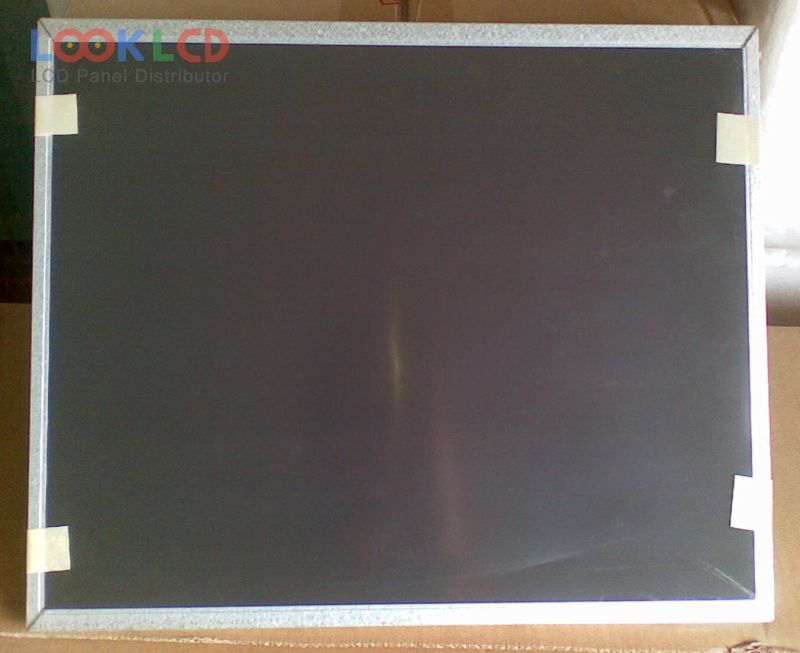

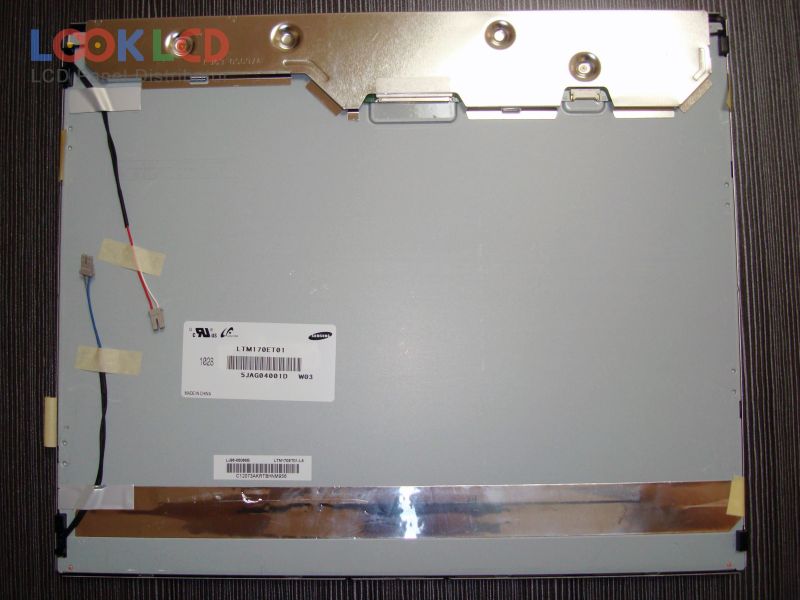

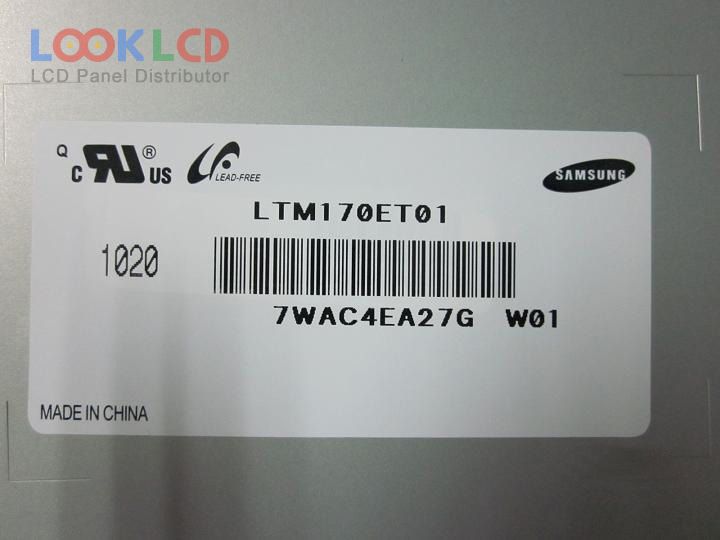

| Broj dijela | LTM170ET01 |
| Marka | Samsung |
| Veličina | 17.0 |
| Primjena | DMPC |
| Rezolucija | 1280×1024 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTM170ET01 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.0 inch |
| rezolucija | 1280(RGB)×1024 , SXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 337.92×270.336 mm |
| obris | 358.5×296.5×17.5 mm |
| površinski | |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Min.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 5 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
