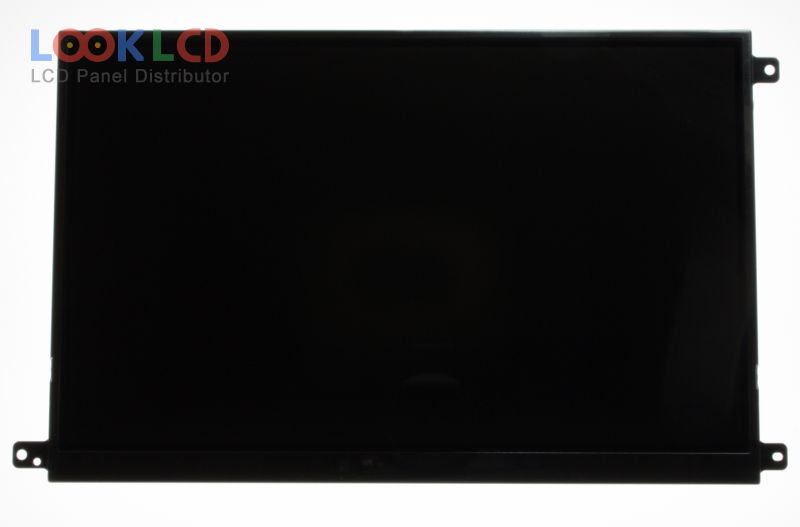

| Broj dijela | LTD089EXWS |
| Marka | TOSHIBA |
| Veličina | 8.9 |
| Primjena | NBPC |
| Rezolucija | 1280×768 |
| Sastav | LCM |
| Svjetlina | 225 |
| CR | 140:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | Toshiba Mobile Display |
| panelni model | LTD089EXWS |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 8.9 inch |
| rezolucija | 1280(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 193.92×116.352 mm |
| obris | 224×133×5.15 mm |
| površinski | Glare (Haze 0%) |
| svjetlina | 225 cd/m² (Typ.) |
| omjer kontrasta | 140:1 (Typ.)(Transmissive) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 80 (Max.)(Tr+Td) |
| kut gledanja | |
| frekvencija | 60Hz |
| tip svjetiljke | 7S6PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
