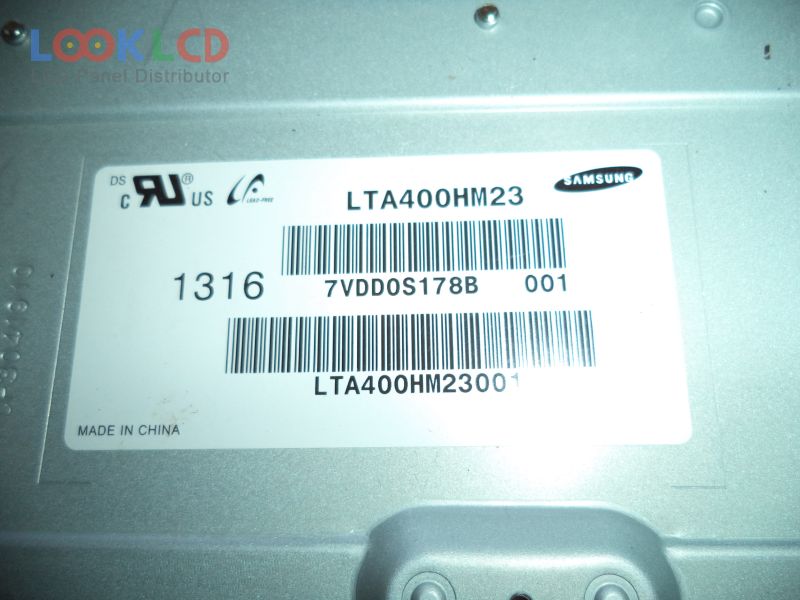

| Broj dijela | LTA400HM23 |
| Marka | Samsung |
| Veličina | 40 |
| Primjena | LCTV |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 5000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTA400HM23 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 40 inch |
| rezolucija | 1920×1080(RGB) , FHD |
| način prikaza | S-PVA, Normally Black, Transmissive |
| aktivno područje | 885.6×498.15 mm |
| obris | 914.4×530.6 mm |
| površinski | Antiglare (Haze 5.5%), Hard coating (2H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 5000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193170% |
| vrijeme odziva | 8 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |

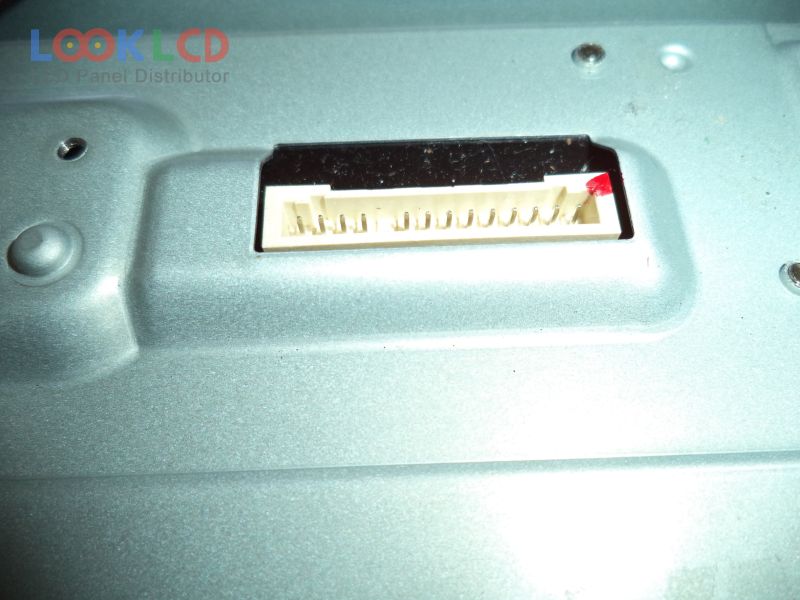

| tip svjetiljke | WLEDEmbedded (LED Driver) |

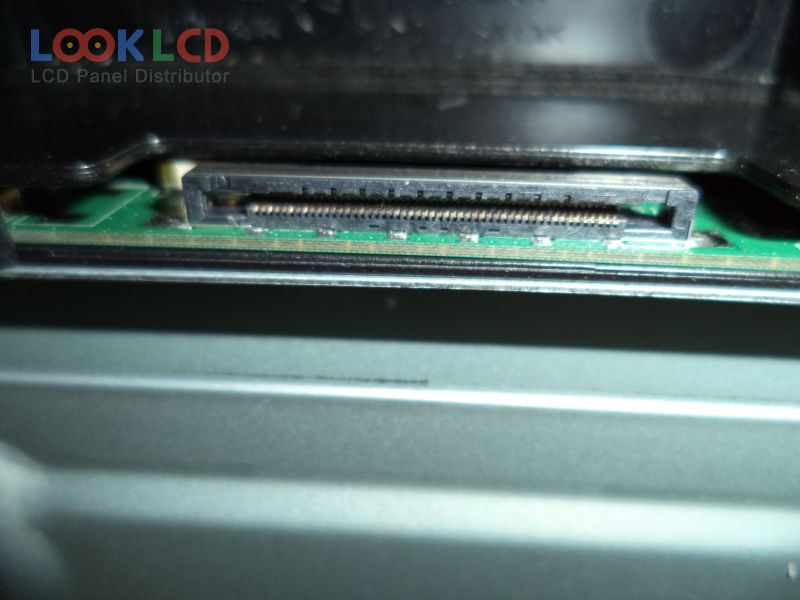

| signalno sučelje | LVDS (2 ch, 8-bit), 51 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
