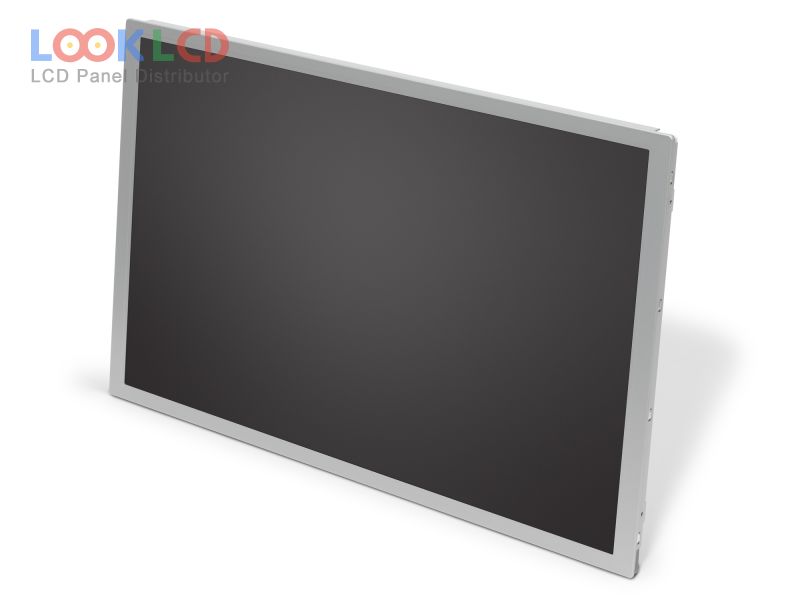

| Broj dijela | LQ190N1LW01 |
| Marka | SHARP |
| Veličina | 19.0 |
| Primjena | IA |
| Rezolucija | 1680×1050 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 900:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | SHARP |
| panelni model | LQ190N1LW01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 19.0 inch |
| rezolucija | 1680(RGB)×1050 , WSXGA+ |
| način prikaza | VA, Normally Black, Transmissive |
| aktivno područje | 409.5×255.94 mm |
| obris | 444×283.3×16 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193170% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | IA |
