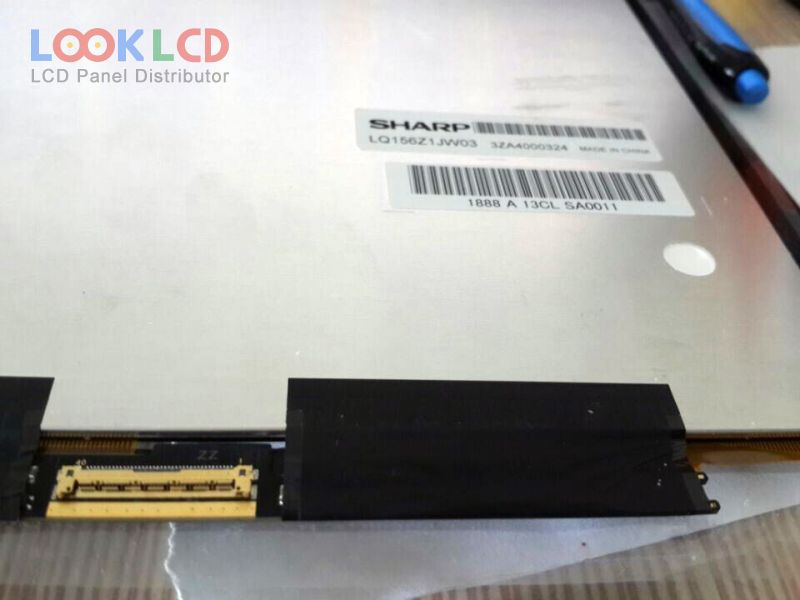

| Broj dijela | LQ156Z1JW03 |
| Marka | SHARP |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 3200×1800 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | SHARP |
| panelni model | LQ156Z1JW03 |
| vrsta panela | IGZO TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 3200(RGB)×1800 , Quad-HD+ |
| način prikaza | New Mode2, Normally Black, Transmissive |
| aktivno područje | 345.6×194.4 mm |
| obris | 358.12×207.56×2.9 mm |
| stil oblika | Slim (PCBA Flat, Depth ≤3.2mm) |
| površinski | Antiglare (Haze 42%) |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (4 Lanes), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
