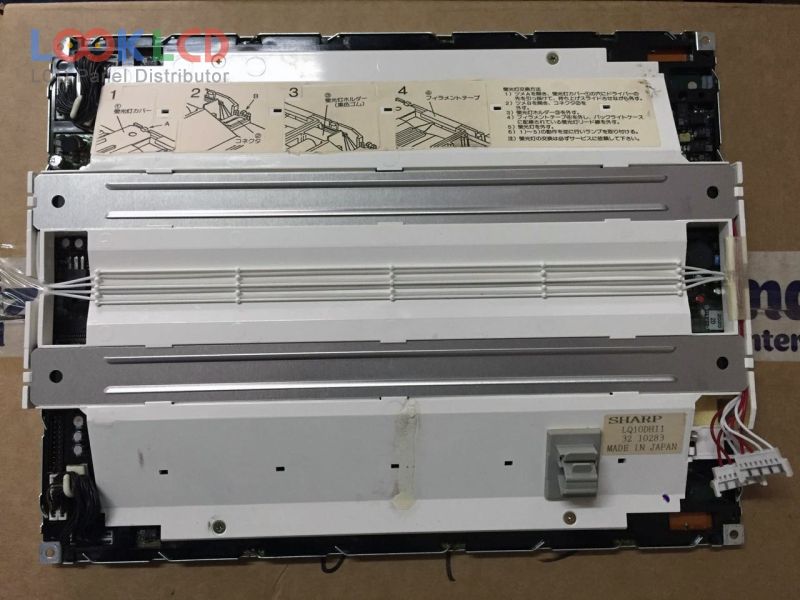

| Broj dijela | LQ10DH11 |
| Marka | SHARP |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 80 |
| CR | 60:1 |
| Boje | 512 |
| Pozadinsko osvjetljenje | HCFL |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ10DH11 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| obris | 283×217 mm |
| površinski | Antiglare, Hard coating (2H) |
| svjetlina | 80 cd/m² (Typ.) |
| omjer kontrasta | 60:1 (Min.) |
| boje prikaza | 512 (3-bit) |
| vrijeme odziva | 30/50 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 2 pcsHCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 3-bit), 22 pins |
| ulazni napon | 5.0/12.0V (Typ.)(VCC/VDD) |
| primjena | IA |
