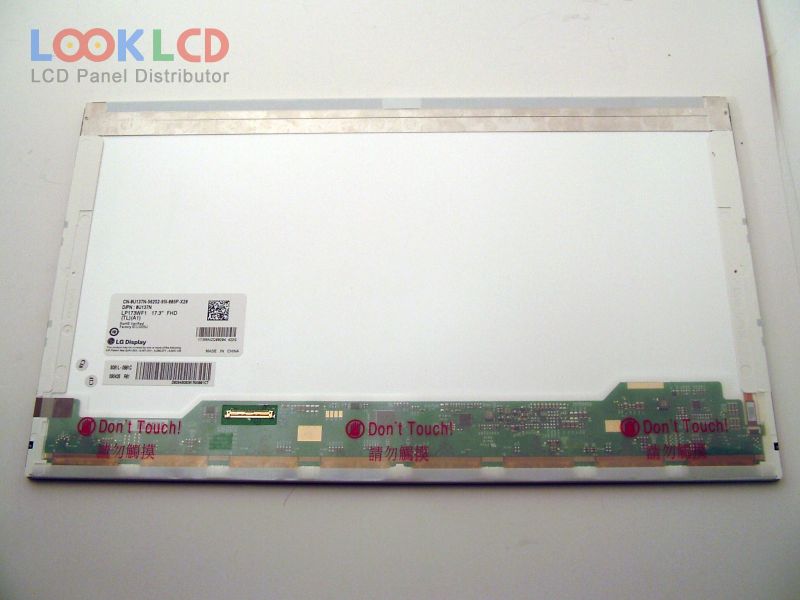

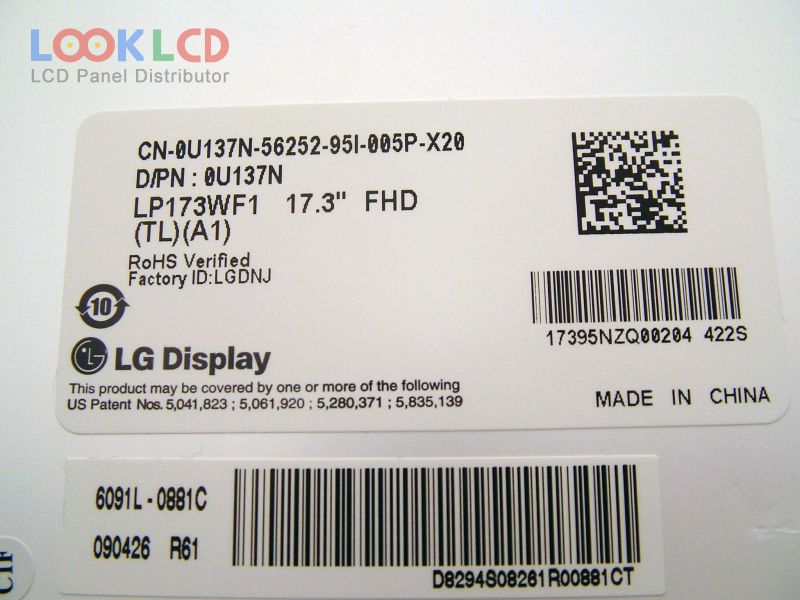

| Broj dijela | LP173WF1-TLA1 |
| Marka | LG Display |
| Veličina | 17.3 |
| Primjena | NBPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LP173WF1-TLA1 5 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.3 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 381.888×214.812 mm |
| obris | 398.1×232.8×6 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (4H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193172% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (2 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
