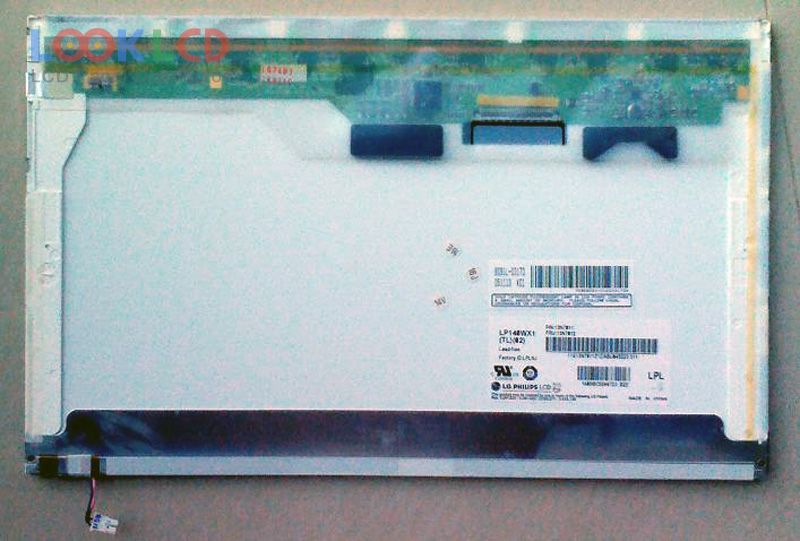

| Broj dijela | LP140WX1-TL02 |
| Marka | LG Display |
| Veličina | 14.0 |
| Primjena | NBPC |
| Rezolucija | 1280×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG.Philips LCD |
| panelni model | LP140WX1-TL02 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.0 inch |
| rezolucija | 1280(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 305.28×183.168 mm |
| obris | 320×199×5.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 6/19 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
