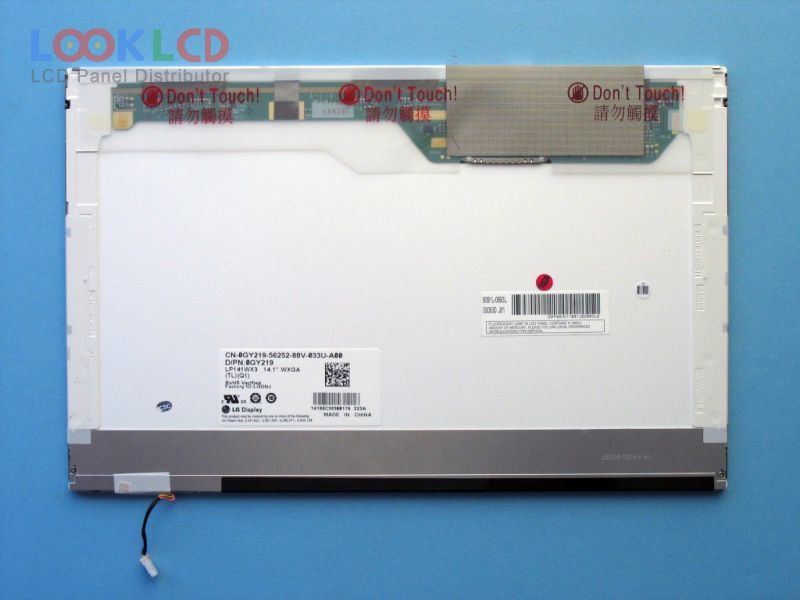

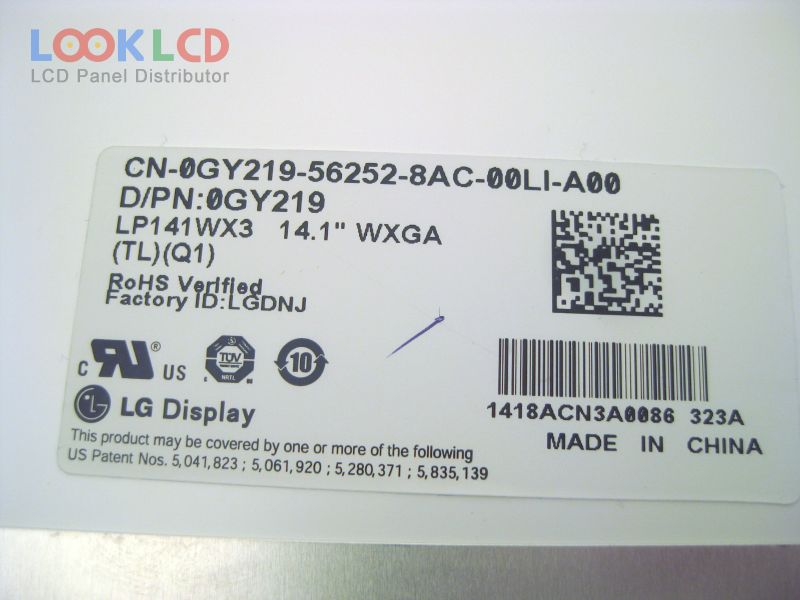

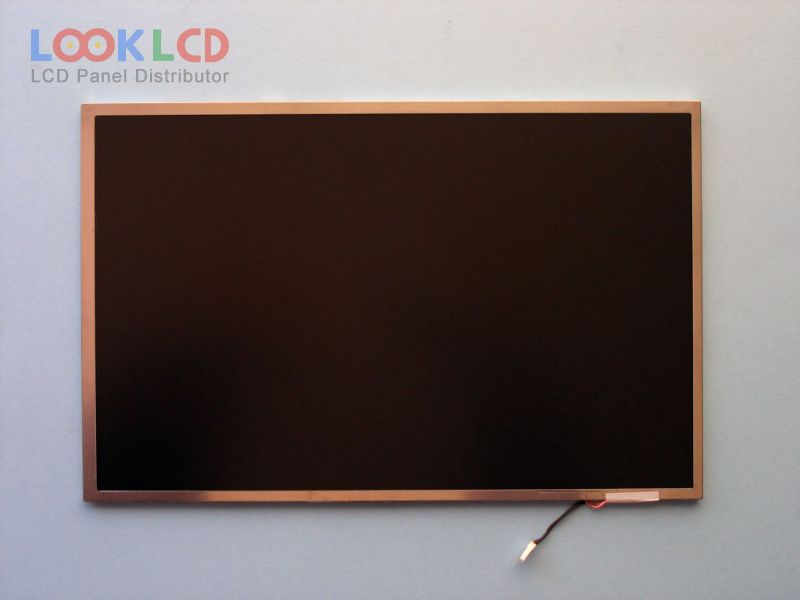

| Broj dijela | LP141WX3-TLQ1 |
| Marka | LG Display |
| Veličina | 14.1 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LP141WX3-TLQ1 19 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 303.74×189.84 mm |
| obris | 319.5×205.5×5.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Min.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 40/40/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| LP141WP1-TLA3 | LG Display | 14.1 | 1440×900 |
| LP141WP2-TLA2 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TL04 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLN4 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLQ1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLB1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| B140RTN02.1 | AUO | 14.0 | 1600×900 |
| LP133WX2-TLAA | LG Display | 13.3 | 1280×800 |
| LP140WD2-TLB1 | LG Display | 14.0 | 1600×900 |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP150X08-TLA3 | LG Display | 15.0 | 1024×768 |
| LP154WU1-TLB1 | LG Display | 15.4 | 1920×1200 |
| LP156WH3-TLL1 | LG Display | 15.6 | 1366×768 |
| LQ108M1JW01 | SHARP | 10.8 | 1920×1080 |
| LTN133AT16-S01 | Samsung | 13.3 | 1280×800 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
