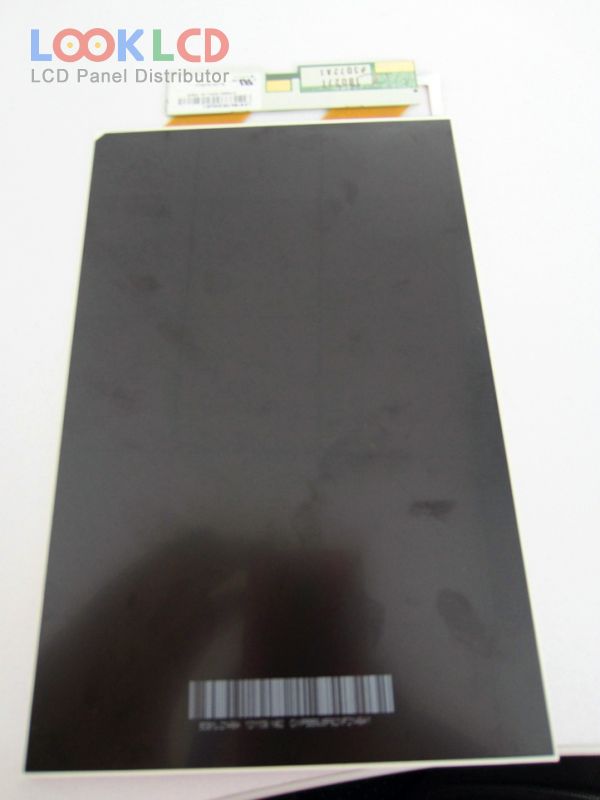

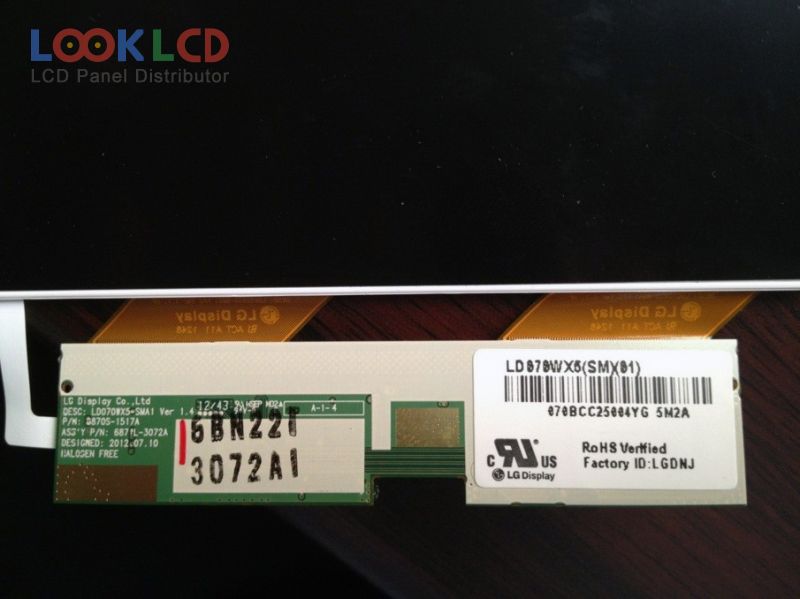

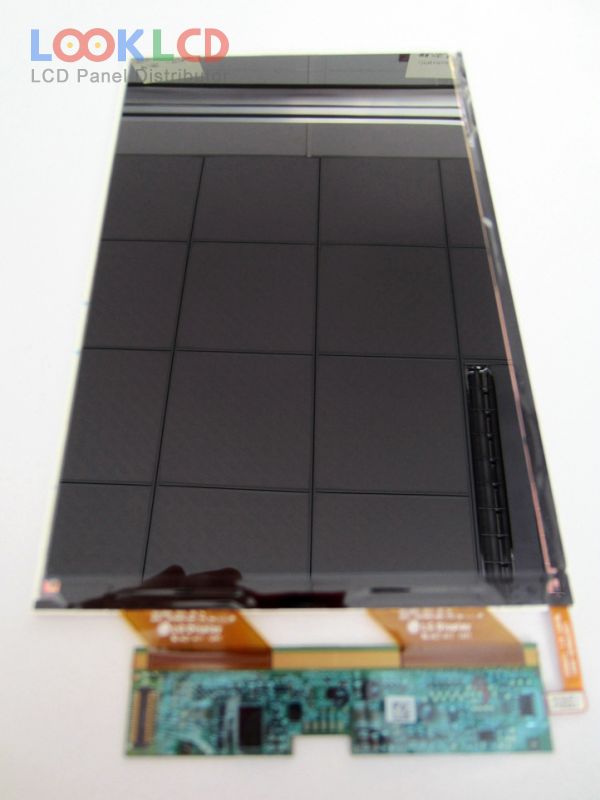

| Broj dijela | LD070WX5-SM01 |
| Marka | LG Display |
| Veličina | 7.0 |
| Primjena | PAD |
| Rezolucija | 900×1440 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | MIPI |
| marka panela | LG Display |
| panelni model | LD070WX5-SM01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 900(RGB)×1440 , WXGA+ |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 94.23×150.77 mm |
| obris | 104.85×163 mm |
| površinski | Hard coating |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC) |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S4PWLEDWithout Driver |
| signalno sučelje | MIPI (4 data lanes), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
