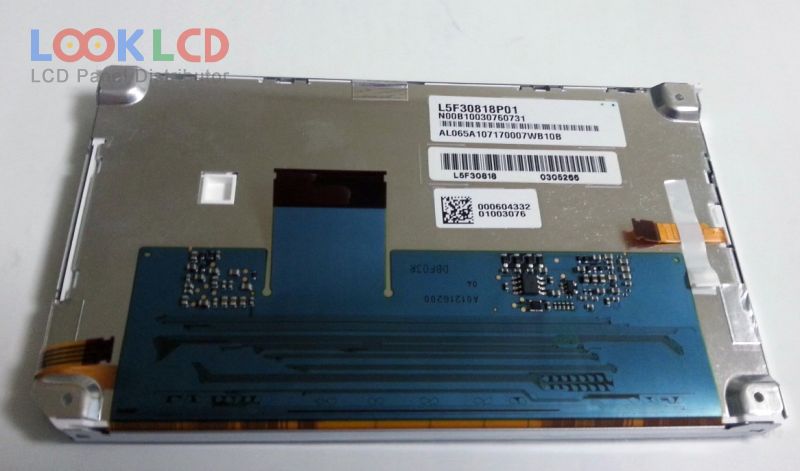

| Broj dijela | L5F30818P01 |
| Marka | Epson |
| Veličina | 6.5 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 850 |
| CR | 700:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | Epson |
| panelni model | L5F30818P01 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | Normally Black, Transmissive |
| aktivno područje | 144×78.24 mm |
| obris | 159.9×93.4 mm |
| površinski | |
| svjetlina | 850 cd/m² (Typ.) |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 5S4PWLEDWithout Driver |
| signalno sučelje | CMOS (1 ch, 6-bit) + SPI, 50 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
