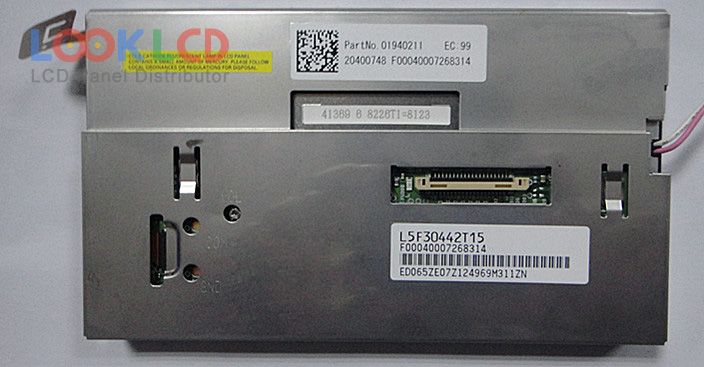

| Broj dijela | L5F30442T15 |
| Marka | Epson |
| Veličina | 6.5 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | Epson |
| panelni model | L5F30442T15 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | CCFL |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) |
| rohs: | |
| primjena | CNS |
| L5F30442T15 | Epson | 6.5 | 800×480 |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| L5F30705T10 | Epson | 5.0 | 400×240 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| L5F30812P00 | Epson | 13.3 | 1024×768 |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| A070FW03 V1 | AUO | 7.0 | 480×234 |
| AM-1024600-070H | Other | 7.0 | 1024×600 |
| G121S1-L01 | Innolux | 12.1 | 800×600 |
| G154I1-L01 | Innolux | 15.4 | 1280×800 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
