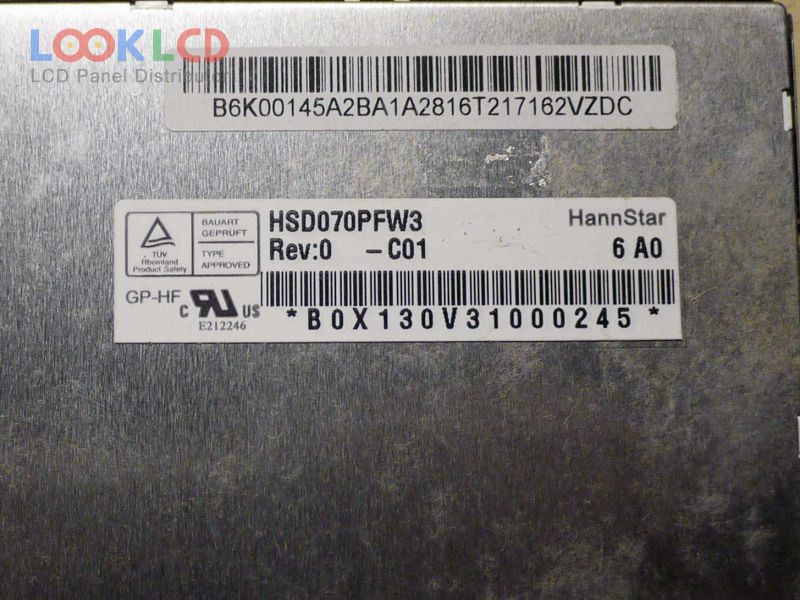

| Broj dijela | HSD070PFW3-C01 |
| Marka | HannStar |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 600 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | HannStar |
| panelni model | HSD070PFW3-C01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 153.6×90 mm |
| obris | 164.4×102.2×6 mm |
| površinski | Hard coating |
| svjetlina | 600 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193150% |
| vrijeme odziva | 4/12 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S8PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
| primjena | CNS |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-C01 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| HSD070PWW1-B01 | HannStar | 7.0 | 1280×800 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| PM070WL4 | E Ink | 7.0 | 800×480 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
| AT101WSM-NW0-3800(3900) | BOE | 10.1 | 1024×600 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| DLC1040ABG-T-2 | Other | 10.4 | 800×600 |
| LQ065T5GA01 | SHARP | 6.5 | 400×234 |
| LTA070B052F | TOSHIBA | 7.0 | 800×480 |
| PM100WX2 | E Ink | 10.0 | 800×480 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
| TX15D02VM0CAA | KOE | 5.8 | 400×240 |
