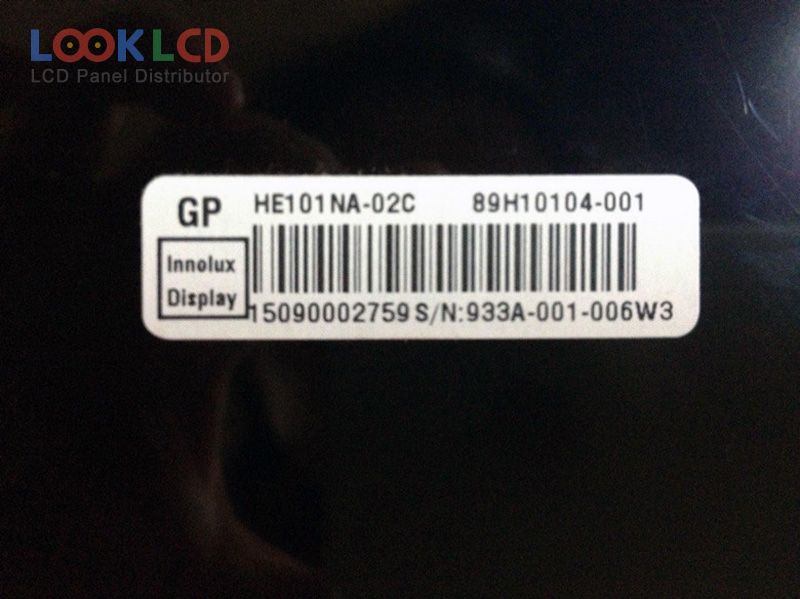

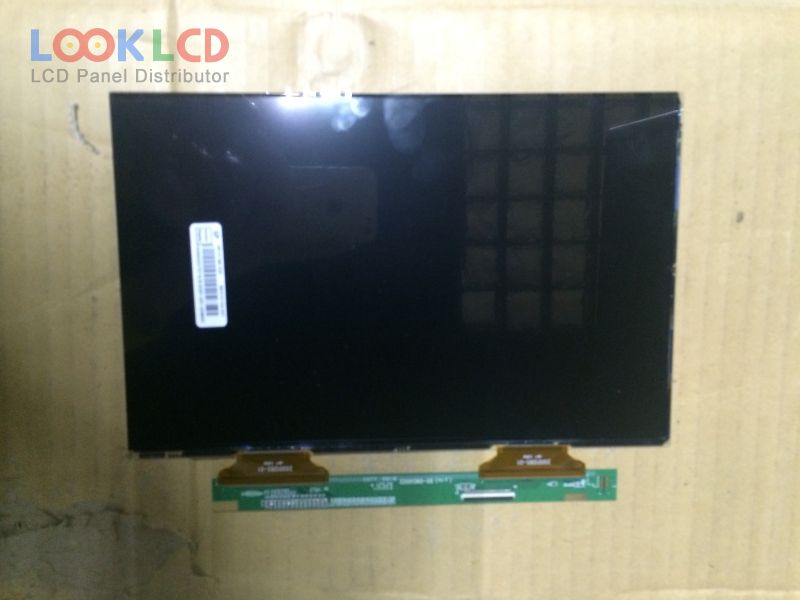

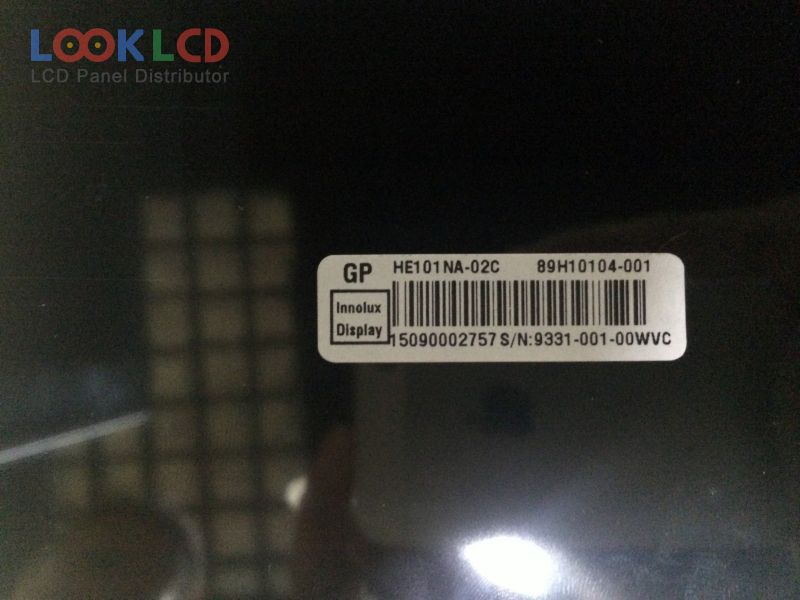

| Broj dijela | HE101NA-02C |
| Marka | Innolux |
| Veličina | 10.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | CELL |
| Svjetlina | 0 |
| CR | 700:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | No B/L |
| Sučelje | TTL |
| marka panela | CHIMEI INNOLUX |
| panelni model | HE101NA-02C |
| vrsta panela | a-Si TFT-LCD , CELL |
| veličina ploče | 10.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 216.96×135.6 mm |
| obris | 224.21×145×1.43 mm |
| površinski | Glare (Haze 0%) |
| dubina stakla | 0.50+0.50 mm |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 10/20 (Typ.)(Tr/Td) |
| kut gledanja | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| primjena | PAD |
