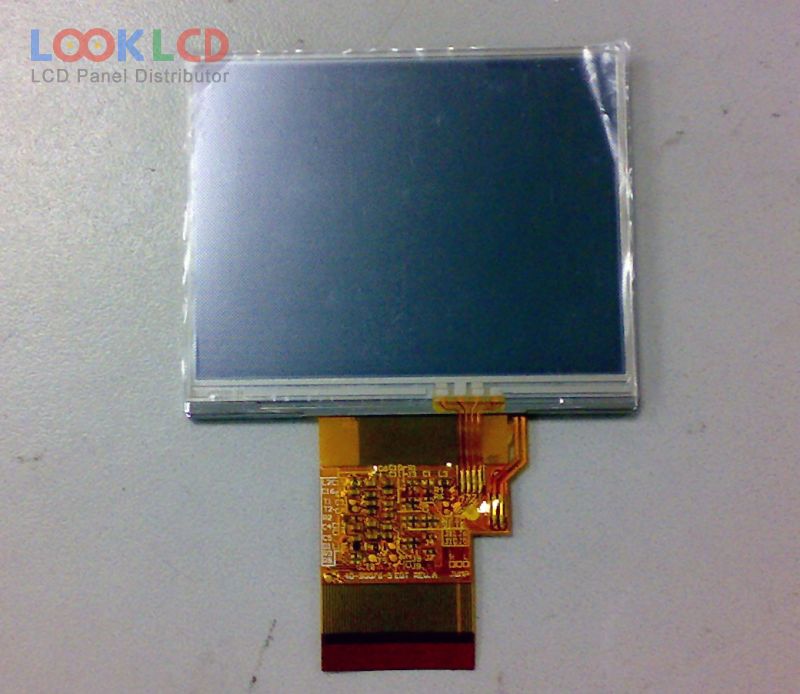

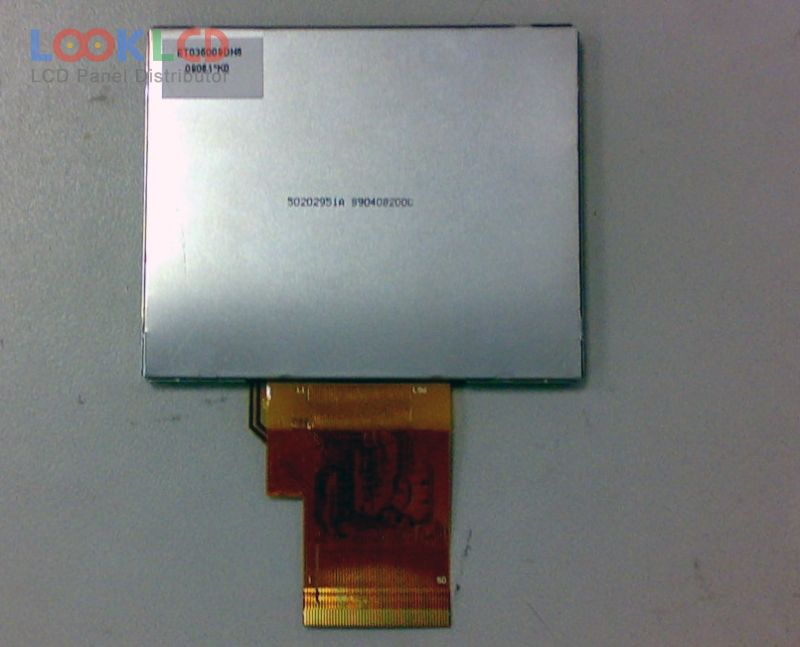

| Broj dijela | ET035009DH6 |
| Marka | EDT |
| Veličina | 3.5 |
| Primjena | IA |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 400:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | EDT |
| panelni model | ET035009DH6 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 70.08×52.56 mm |
| obris | 76.8×63.8 mm |
| površinski | |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 15/35 (Typ.)(Tr/Td) |
| kut gledanja | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| ulazni napon | 3.3/3.3V (Typ.)(VCC/VDD) |
| primjena | IA |
