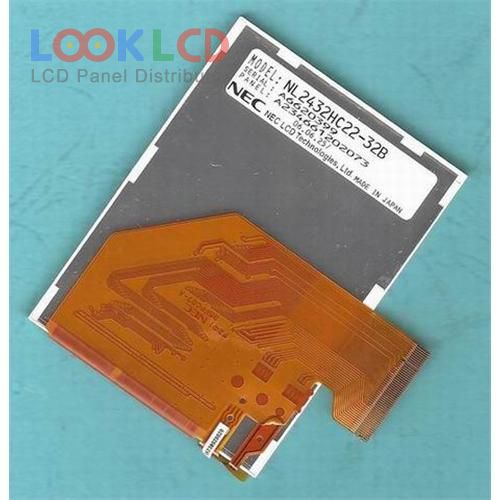

| Broj dijela | NL2432HC22-32B |
| Marka | NLT |
| Veličina | 3.5 |
| Primjena | PDA |
| Rezolucija | 240×320 |
| Sastav | LCM |
| Svjetlina | 100 |
| CR | 70:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | NEC |
| panelni model | NL2432HC22-32B |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 240(RGB)×320 , QVGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 53.64×71.52 mm |
| obris | 64×85 mm |
| površinski | Antiglare |
| svjetlina | 100 cd/m² (Typ.) |
| omjer kontrasta | 70:1 (Typ.)(Transmissive) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 39 (Typ.)(Tr+Td) |
| kut gledanja | 25/25/25/20 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | WLED |
| signalno sučelje | CMOS (1 ch, 6-bit) |
| ulazni napon | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| primjena | PDA |
