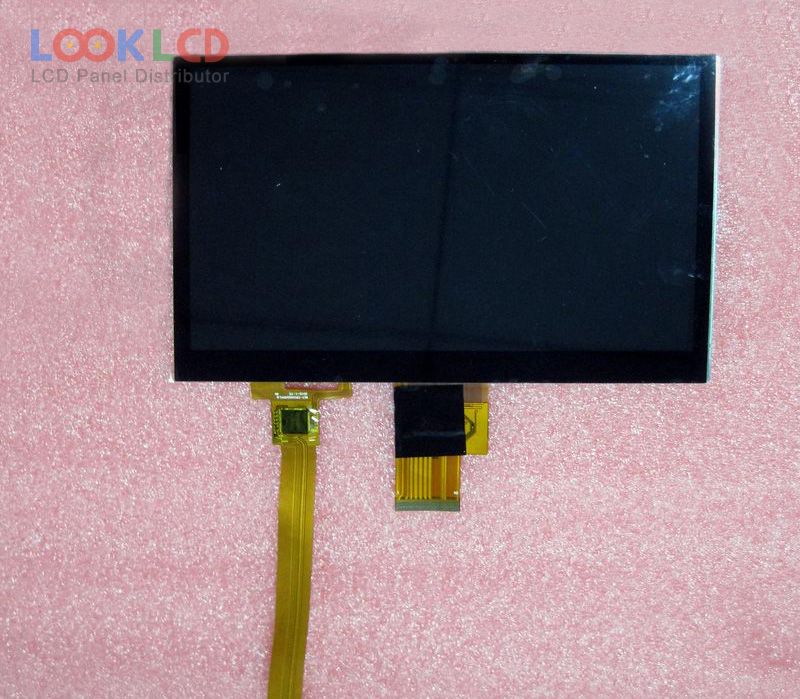

| Broj dijela | DLC0700JBG-T-6 |
| Marka | Other |
| Veličina | 7.0 |
| Primjena | IA |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 430 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | DLC |
| panelni model | DLC0700JBG-T-6 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 154.21×85.92 mm |
| obris | 165.75×102.05×5.05 mm |
| površinski | |
| svjetlina | 430 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193150% |
| vrijeme odziva | 20 (Typ.)(Tr+Td) |
| kut gledanja | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S10PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
