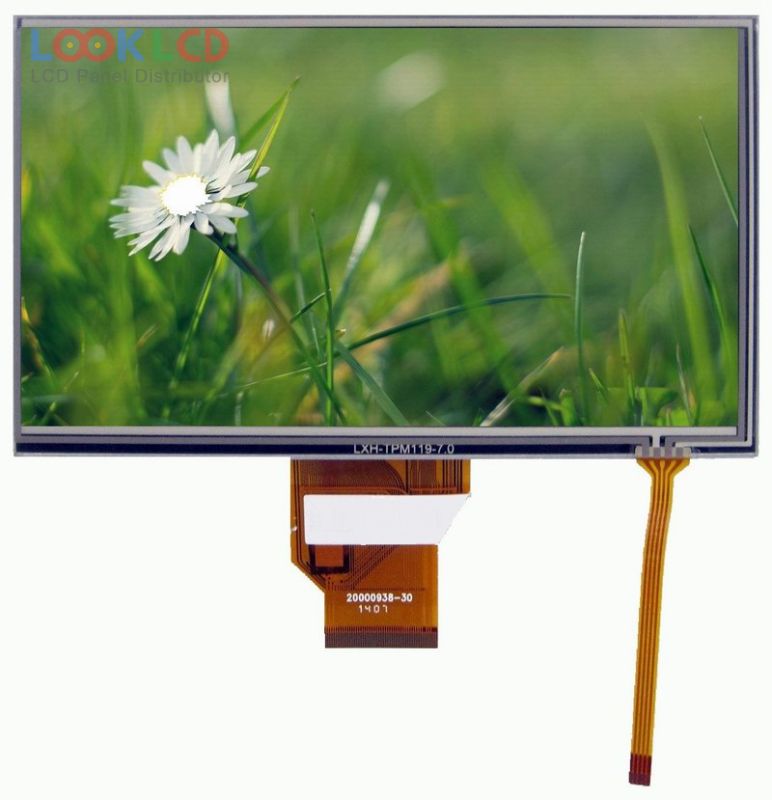

| Broj dijela | DLC0700EZG-T-2 |
| Marka | Other |
| Veličina | 7.0 |
| Primjena | MP4 |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 320 |
| CR | 500:1 |
| Boje | 262K/16.2M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | DLC |
| panelni model | DLC0700EZG-T-2 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 154.08×85.92 mm |
| obris | 164.9×100 mm |
| površinski | |
| svjetlina | 320 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193149% |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 3S9PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 50 pins |
| ulazni napon | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| primjena | MP4 |
