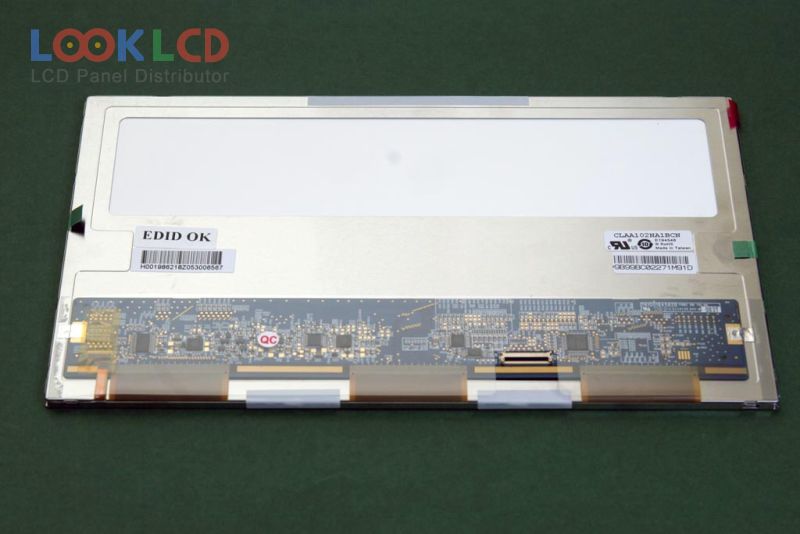

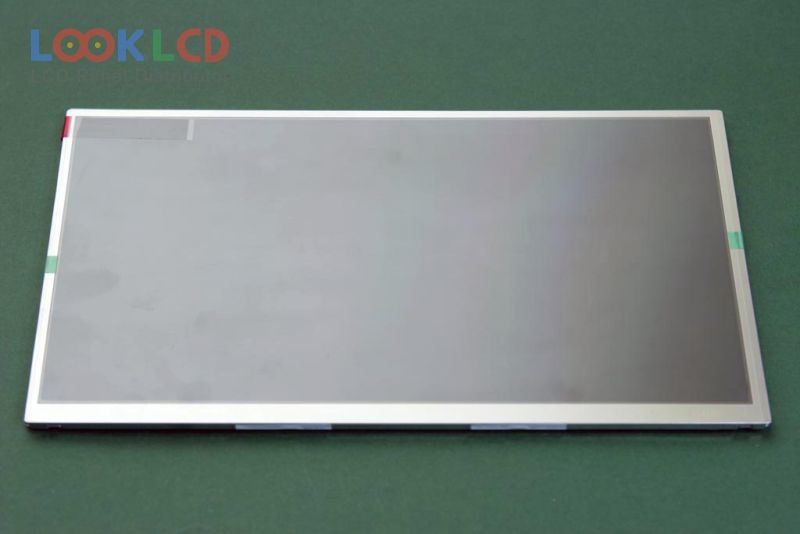

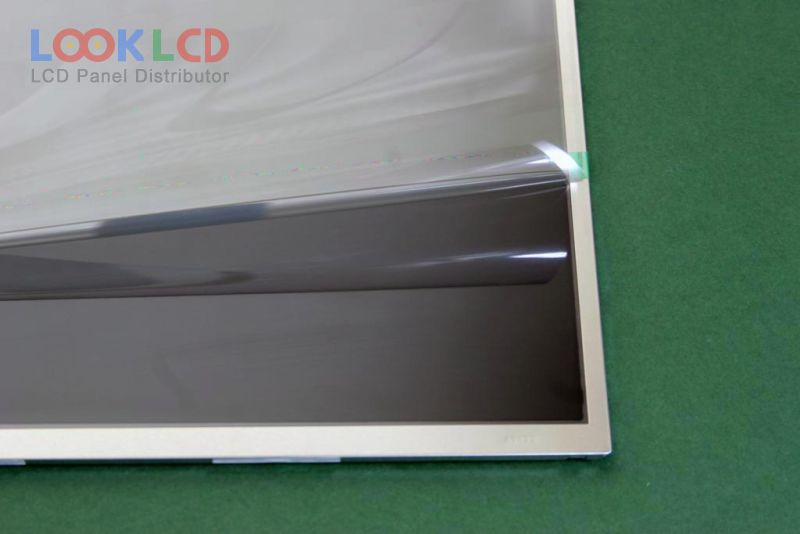

| Broj dijela | CLAA102NA1BCN |
| Marka | CPT |
| Veličina | 10.2 |
| Primjena | PDVD |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CPT |
| panelni model | CLAA102NA1BCN |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.2 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 222.72×130.5 mm |
| obris | 235.2×145.8 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| rohs: | |
| primjena | PDVD |
