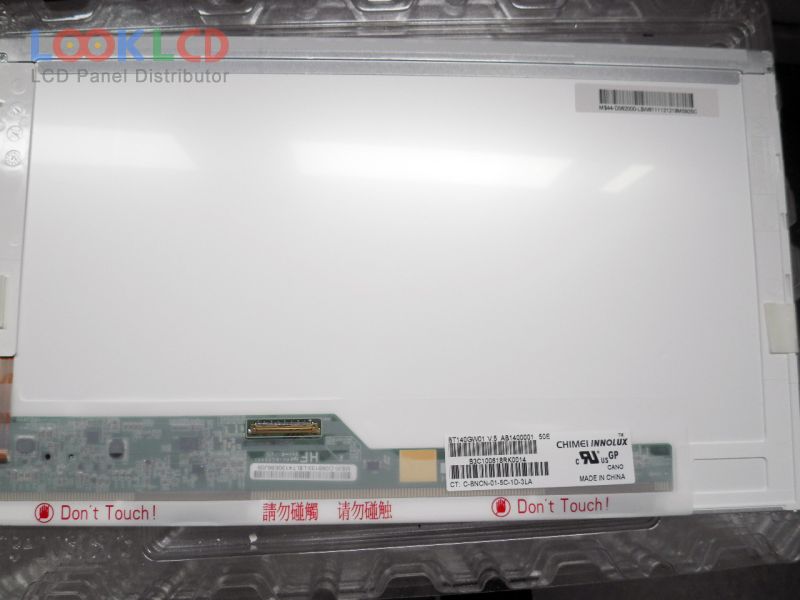

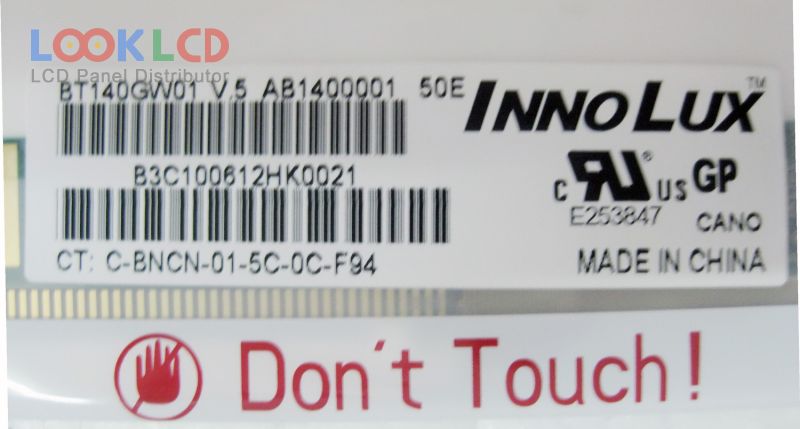

BT140GW01 V.5

BT140GW01 V.5
BT140GW01 V.5
BT140GW01 V.5 thumb BT140GW01 V.5 thumb
Marka
Innolux
Veličina
14.0
Primjena
NBPC
Rezolucija
1366×768
Sastav
LCM
Svjetlina
200
CR
600:1
Boje
262K
Pozadinsko osvjetljenje
WLED
Sučelje
LVDS
In Stock
1542
Tehnički podaci

Broj dijela BT140GW01 V.5
MarkaInnolux
Veličina14.0
PrimjenaNBPC
Rezolucija1366×768
SastavLCM
Svjetlina200
CR600:1
Boje262K
Pozadinsko osvjetljenjeWLED
SučeljeLVDS
marka panelaCHIMEI INNOLUX
panelni modelBT140GW01 V.5 4 Compatible model
vrsta panela a-Si TFT-LCD , LCM
veličina ploče14.0 inch
rezolucija1366(RGB)×768 , WXGA
način prikazaTN, Normally White, Transmissive
aktivno područje309.399×173.952 mm
obris323.5×192×5.2 mm
stil oblikaWedge (PCBA Bent, Depth ≥5.2mm)
površinskiGlare (Haze 0%), Hard coating (3H)
svjetlina200 cd/m² (Typ.)
omjer kontrasta600:1 (Typ.)
boje prikaza262K (6-bit), CIE193145%
vrijeme odziva8 (Typ.)(Tr+Td)
kut gledanja40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frekvencija60Hz
tip svjetiljkeWLEDEmbedded (LED Driver)
signalno sučeljeLVDS (1 ch, 6-bit), 40 pins
ulazni napon3.3V (Typ.)
primjenaNBPC
