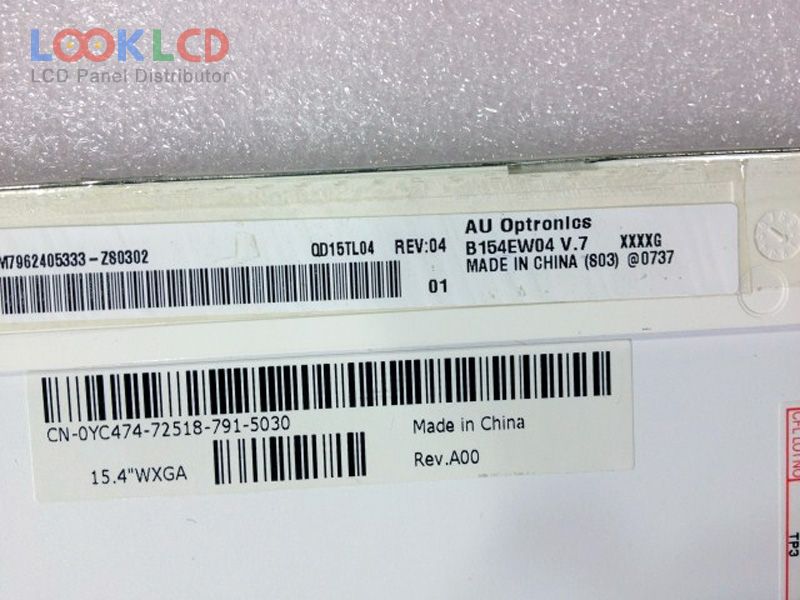

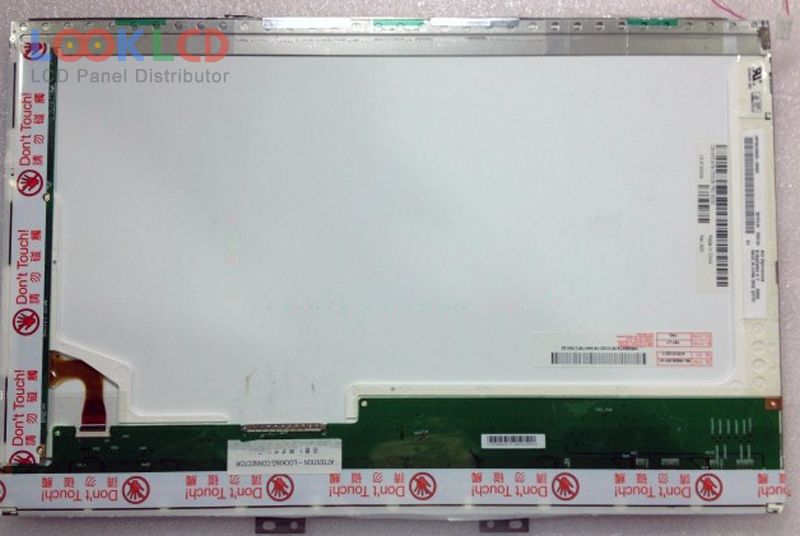

| Broj dijela | B154EW04 V7 |
| Marka | AUO |
| Veličina | 15.4 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 165 |
| CR | 350:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B154EW04 V7 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.4 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 331.2×207 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H), Antireflection |
| svjetlina | 165 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 8/17 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| rohs: | |
| primjena | NBPC |
