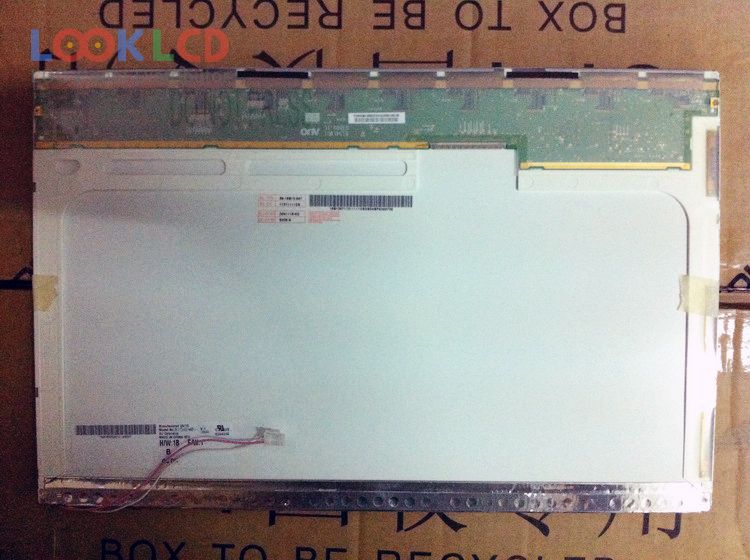

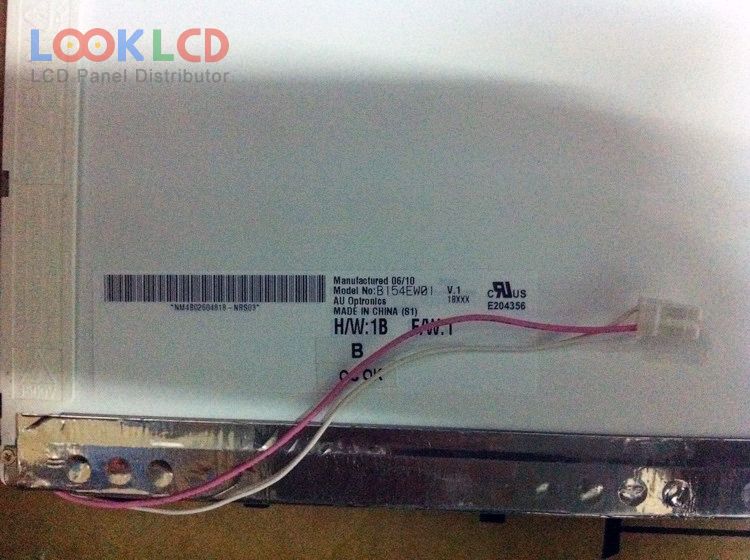

| Broj dijela | B154EW01 V1 |
| Marka | AUO |
| Veličina | 15.4 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B154EW01 V1 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.4 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 331.2×207 mm |
| obris | 344×222×6.8 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (2H), Reflection 2.5% (Typ.) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 18/7.0 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B154EW01 V1 | AUO | 15.4 | 1280×800 |
| B154EW01 V9 | AUO | 15.4 | 1280×800 |
| B154EW02 V2 | AUO | 15.4 | 1280×800 |
| B154EW02 V3 | AUO | 15.4 | 1280×800 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| B154EW02 V7 | AUO | 15.4 | 1280×800 |
| B154EW04 V7 | AUO | 15.4 | 1280×800 |
| B154EW08 V0 HW2A | AUO | 15.4 | 1280×800 |
| B154EW08 V1 | AUO | 15.4 | 1280×800 |
| B154EW09 V0 | AUO | 15.4 | 1280×800 |
| LP121WX4-TLA1 | LG Display | 12.1 | 1280×800 |
| LP140WD2-TLE2 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TLD6 | LG Display | 14.0 | 1366×768 |
| LP150E07-A3K1 | LG Display | 15.0 | 1400×1050 |
| LP171WP4-TLN2 | LG Display | 17.1 | 1440×900 |
| LP173WD1-TLC1 | LG Display | 17.3 | 1600×900 |
| LTN141AT13-H01 | Samsung | 14.1 | 1280×800 |
| LTN156AT17-D02 | Samsung | 15.6 | 1366×768 |
| N140HGE-EA1 | Innolux | 14.0 | 1920×1080 |
| QD14TL01 Rev.04 | QDI | 14.1 | 1280×800 |
