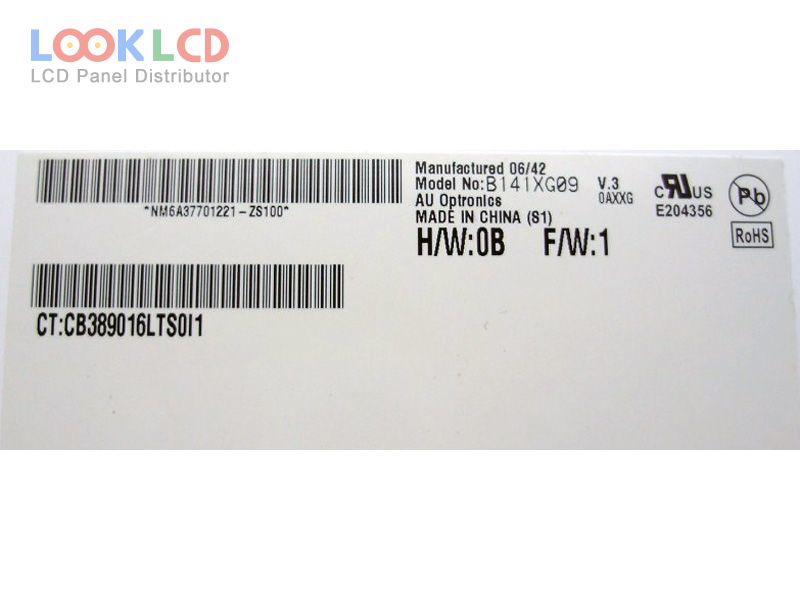

| Broj dijela | B141XG09 V3 |
| Marka | AUO |
| Veličina | 14.1 |
| Primjena | NBPC |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B141XG09 V3 8 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.1 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 285.696×214.272 mm |
| obris | 299×228×5.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B141XG08 V2 | AUO | 14.1 | 1024×768 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| B141XG09 V3 | AUO | 14.1 | 1024×768 |
| B141XG10 V0 | AUO | 14.1 | 1024×768 |
| B141XG13 V8 | AUO | 14.1 | 1024×768 |
| B141XG14 V1 | AUO | 14.1 | 1024×768 |
| B141XN01 V0 | AUO | 14.1 | 1024×768 |
| B141XN03 V0 | AUO | 14.1 | 1024×768 |
| B141XN04 V2 | AUO | 14.1 | 1024×768 |
| LM12S029 | SHARP | 12.1 | 800×600 |
| LP101WH1-TLA2 | LG Display | 10.1 | 1366×768 |
| LP154WX7-TLB3 | LG Display | 15.4 | 1280×800 |
| LTD111EXCA | TOSHIBA | 11.1 | 1366×768 |
| LTD133EV2F | TOSHIBA | 13.3 | 1280×800 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| LTN160AT03-002 | Samsung | 16.0 | 1366×768 |
| N154I5-L02 | Innolux | 15.4 | 1280×800 |
| N164HGE-L11 | Innolux | 16.4 | 1920×1080 |
