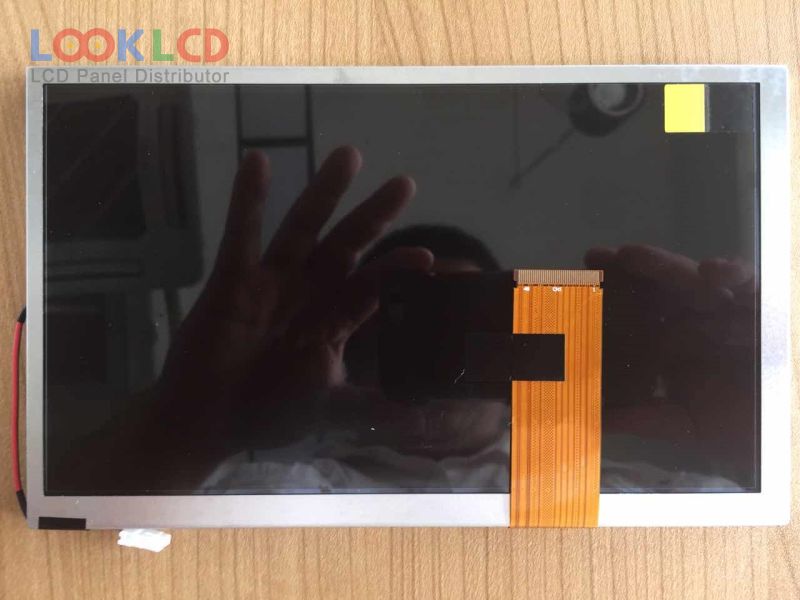

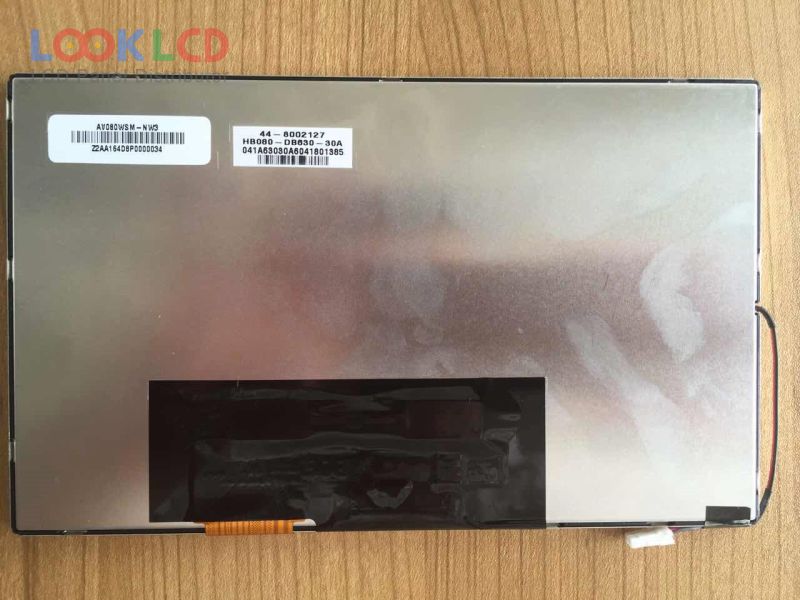

| Broj dijela | AV080WSM-NW3 |
| Marka | BOE |
| Veličina | 8.0 |
| Primjena | CNS |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 600 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | BOE |
| panelni model | AV080WSM-NW3 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 8.0 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno područje | 176.64×99.36 mm |
| obris | 192.8×116.9×7.1 mm |
| površinski | |
| svjetlina | 600 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193150% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S10PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/11.5/24/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| primjena | CNS |
