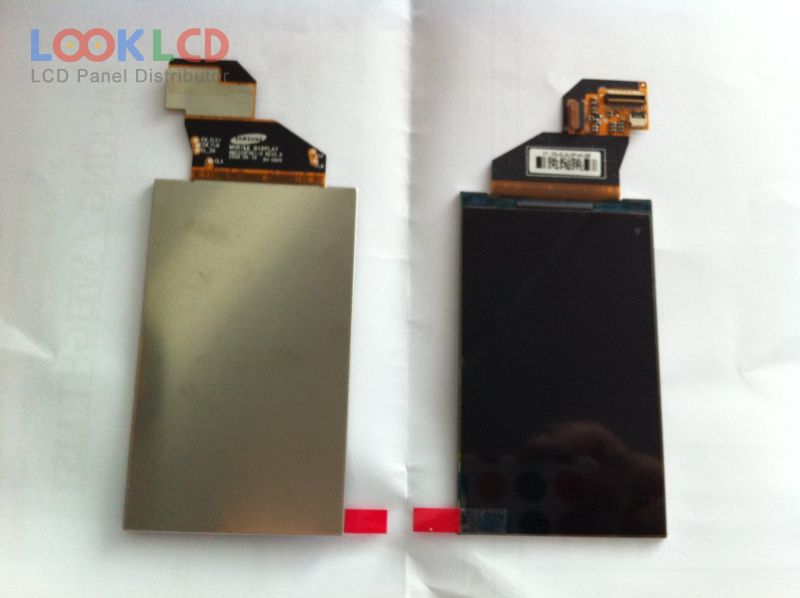

| Broj dijela | AMS320FH01-0 |
| Marka | Samsung |
| Veličina | 3.2 |
| Primjena | MPH |
| Rezolucija | 240×400 |
| Sastav | OLED |
| Svjetlina | 300 |
| CR | 10000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | self |
| Sučelje | MDDI |
| marka panela | SAMSUNG |
| panelni model | AMS320FH01-0 |
| vrsta panela | AM-OLED , OLED |
| veličina ploče | 3.2 inch |
| rezolucija | 240(RGB)×400 , WQVGA |
| aktivno područje | 41.76×69.6 mm |
| obris | 46.16×76.58 mm |
| površinski | Glare (Haze 0%), Hard coating |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 10000 : 1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE1931106% |
| kut gledanja | 60/60/60/60 (Min.)(CR≥200)(L/R/U/D) |
| signalno sučelje | MDDI (1 data lane), 44 pins |
| ulazni napon | 2.5/2.34/4.55/-5.0 (Typ.)(VCI/ADD3/ELVDD/ELVSS) |
| primjena | MPH |
| AMS320FH01-0 | Samsung | 3.2 | 240×400 |
| H320QN01 V2 | AUO | 3.2 | 320×480 |
| H381DLN01.0 | AUO | 3.8 | 1080×1200 |
| HVA32WV1-D00 | HYDIS | 3.2 | 480×800 |
| LH350WS1-SD01 | LG Display | 3.5 | 640×960 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LS030B3UW01 | SHARP | 3.0 | 240×400 |
| LS030Y3DX01 | SHARP | 3.0 | 480×800 |
| LS035Y8DX02A | SHARP | 3.5 | 480×800 |
| PJ055IA-14C | Innolux | 5.5 | 1080×1920 |
