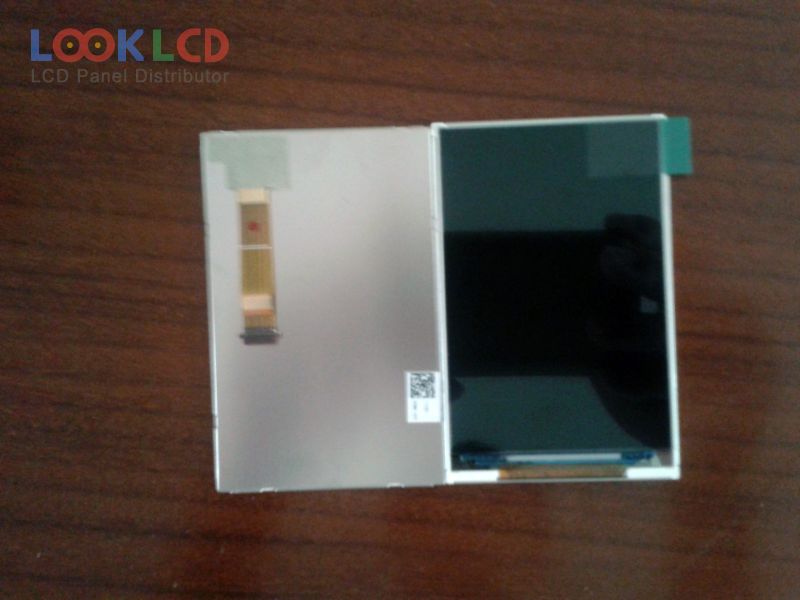

| Broj dijela | H320QN01 V2 |
| Marka | AUO |
| Veličina | 3.2 |
| Primjena | MPH |
| Rezolucija | 320×480 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | MDDI/MIPI |
| marka panela | AUO |
| panelni model | H320QN01 V2 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.2 inch |
| rezolucija | 320(RGB)×480 , HVGA |
| način prikaza | AMVA, Normally Black, Transmissive |
| aktivno područje | 45.12×67.68 mm |
| obris | 50.6×78.9×2.18 mm |
| površinski | |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193167% |
| vrijeme odziva | 35 (Max.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | MDDI/MIPI, 23 pins |
| ulazni napon | 1.8/2.85V (IOVDD/AVDD) |
| primjena | MPH |
