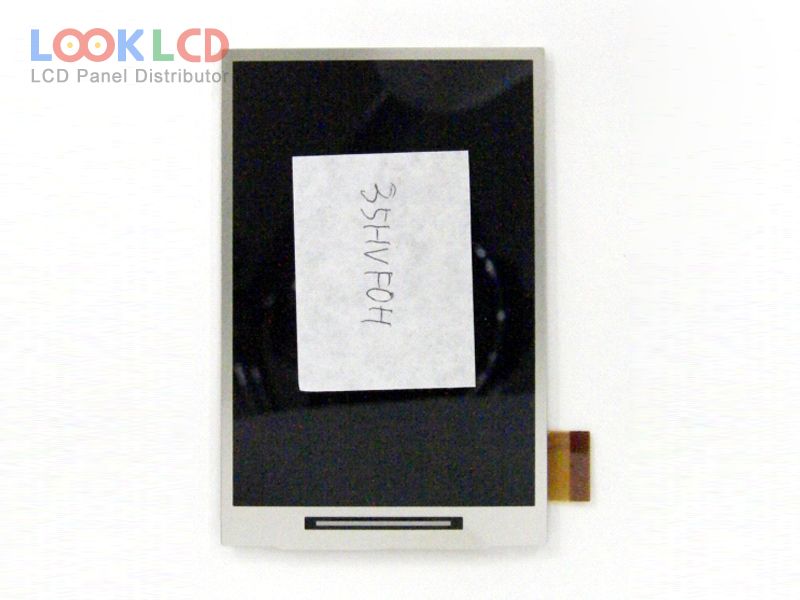

| Broj dijela | 35HVF0H |
| Marka | SII |
| Veličina | 3.5 |
| Primjena | PND |
| Rezolucija | 320×480 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SII |
| panelni model | 35HVF0H |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×480 , HVGA |
| način prikaza | FFS, Normally Black, Transmissive |
| aktivno područje | 49.44×74.16 mm |
| obris | 55.34×84.55×2.28 mm |
| površinski | Clear, Hard coating |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193170% |
| vrijeme odziva | 40 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 5S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| primjena | PND |
