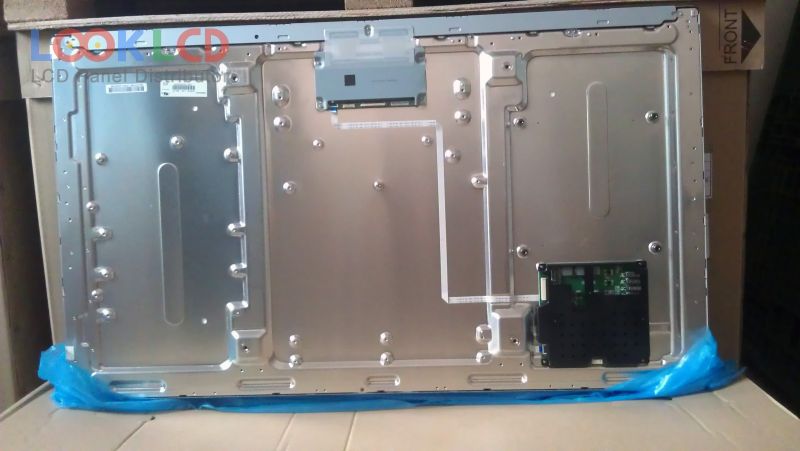

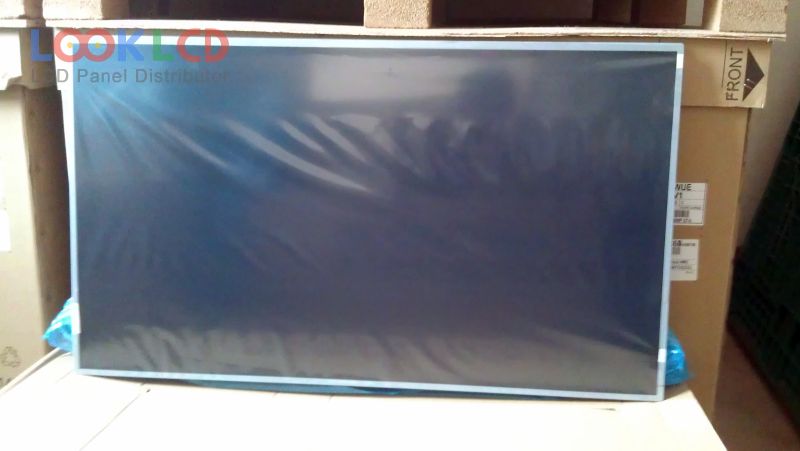

| Broj dijela | V420HK1-LS5 |
| Marka | Innolux |
| Veličina | 42 |
| Primjena | LCTV |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 5000:1 |
| Boje | 1.07B |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | V420HK1-LS5 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 42 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | Super MVA, Normally Black, Transmissive |
| aktivno područje | 930.24×523.26 mm |
| obris | 958.2×553.3 mm |
| površinski | Antiglare (Haze 3.5%), Hard coating (3H) |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 5000:1 (Typ.) |
| boje prikaza | 1.07B (8-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 6 (Typ.)(G to G) |
| kut gledanja | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekvencija | 120Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (4 ch, 10-bit), 92 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
