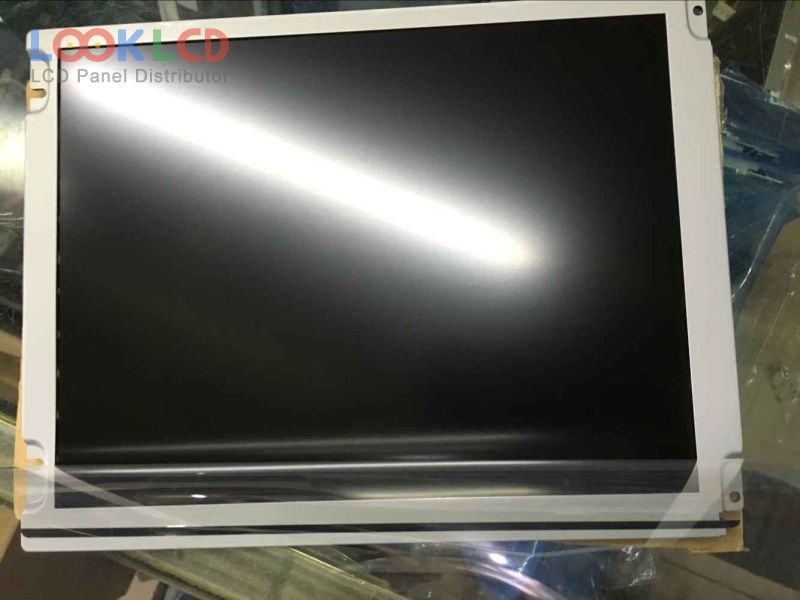

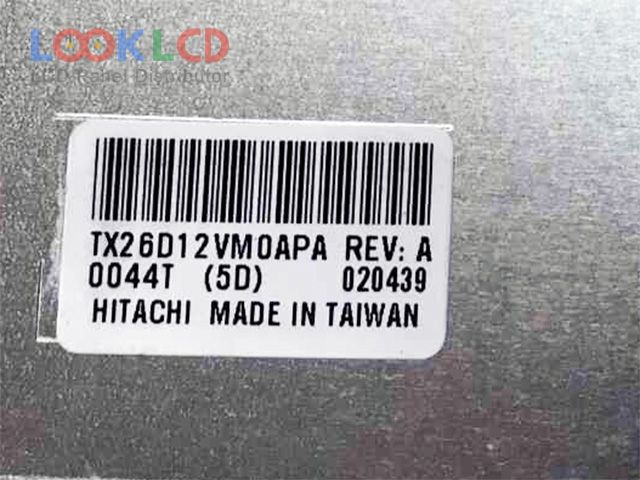

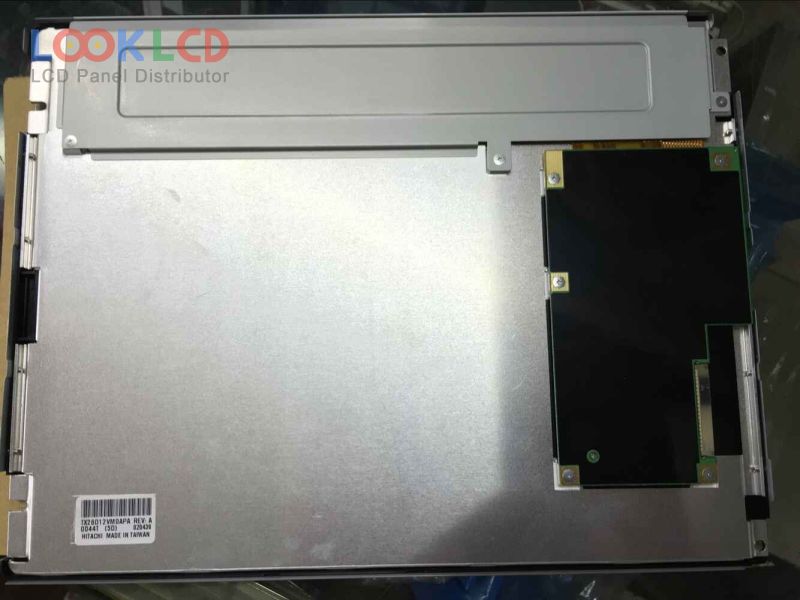

| Broj dijela | TX26D12VM0APA |
| Marka | KOE |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 800×600 |
| Sastav | LCM |
| Svjetlina | 360 |
| CR | 800:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | HITACHI |
| panelni model | TX26D12VM0APA |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 800(RGB)×600 , SVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| obris | 243×185.1 mm |
| površinski | Antiglare |
| svjetlina | 360 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193154% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S8PWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
