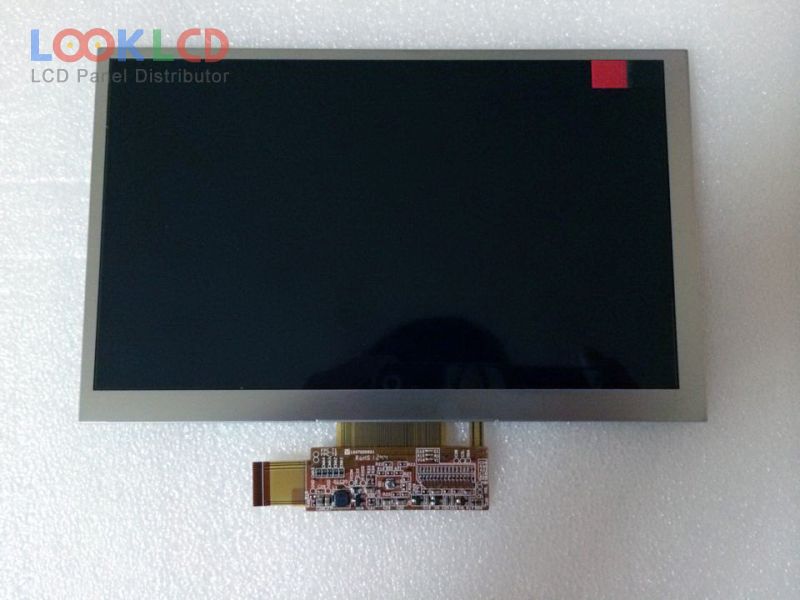

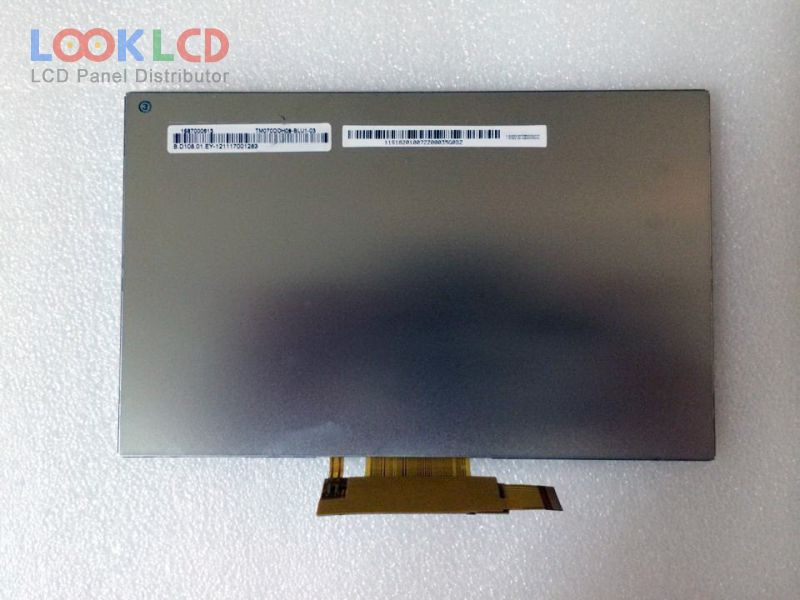

| Broj dijela | TM070DDH09 |
| Marka | Tianma |
| Veličina | 7.0 |
| Primjena | MP4 |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 500:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | TIANMA |
| panelni model | TM070DDH09 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 153.6×90 mm |
| obris | 167.25×104.65×2.9 mm |
| površinski | Antiglare |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| vrijeme odziva | 20 (Typ.)(Tr+Td) |
| kut gledanja | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S6PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 39 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | MP4 |
