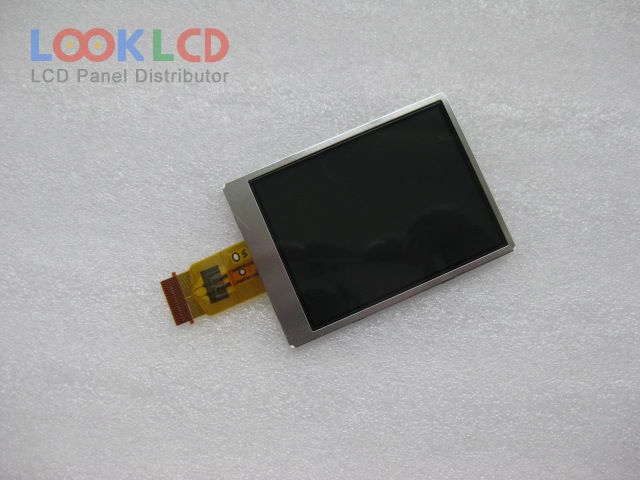

| Broj dijela | TD025THEA3 |
| Marka | TPO |
| Veličina | 2.5 |
| Primjena | DSC |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 300:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | TPO |
| panelni model | TD025THEA3 |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 2.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 50.91×38.16 mm |
| obris | 61.7×44.5 mm |
| površinski | Hard coating (3H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 13/22 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 2S1PWLEDWithout Driver |
| signalno sučelje | Serial RGB (8-bit) + SPI, CCIR601, 39 pins |
| ulazni napon | 3.0V (Typ.) |
| primjena | DSC |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| H245QBN02.0 | AUO | 2.5 | 240×432 |
| LQ025Q3DW01 | SHARP | 2.5 | 320×240 |
| TD025THEA3 | TPO | 2.5 | 320×240 |
| TD025THEB5 | TPO | 2.5 | 320×240 |
| TD025THED2 | TPO | 2.5 | 320×240 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| TD025THEEA | TPO | 2.5 | 640×240 |
| TD025THEG1 | TPO | 2.5 | 320×240 |
| A015AN02 V5 | AUO | 1.46 | 280×220 |
| A024CN02 VJ | AUO | 2.4 | 480×234 |
| A025DN01 V3 | AUO | 2.5 | 320×240 |
| A027DN01 V1 | AUO | 2.7 | 320×240 |
| A027DN01 VB | AUO | 2.7 | 320×240 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
