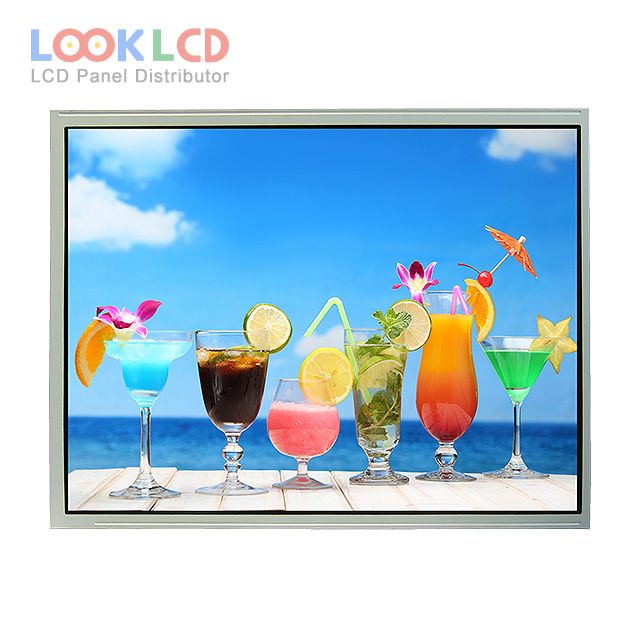

| Broj dijela | TCG121XGLPAPNN-AN20 |
| Marka | Kyocera |
| Veličina | 12.1 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 750:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | Kyocera |
| panelni model | TCG121XGLPAPNN-AN20 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | AWV, Normally Black, Transmissive |
| aktivno područje | 245.76×184.32 mm |
| obris | 260.5×203.4×10.8 mm |
| površinski | Antiglare |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 750:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| vrijeme odziva | 18/12 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
