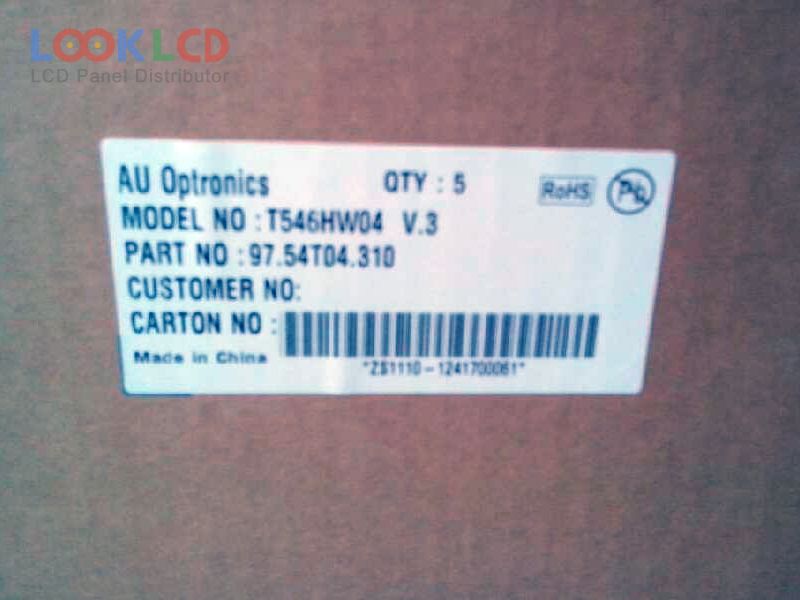

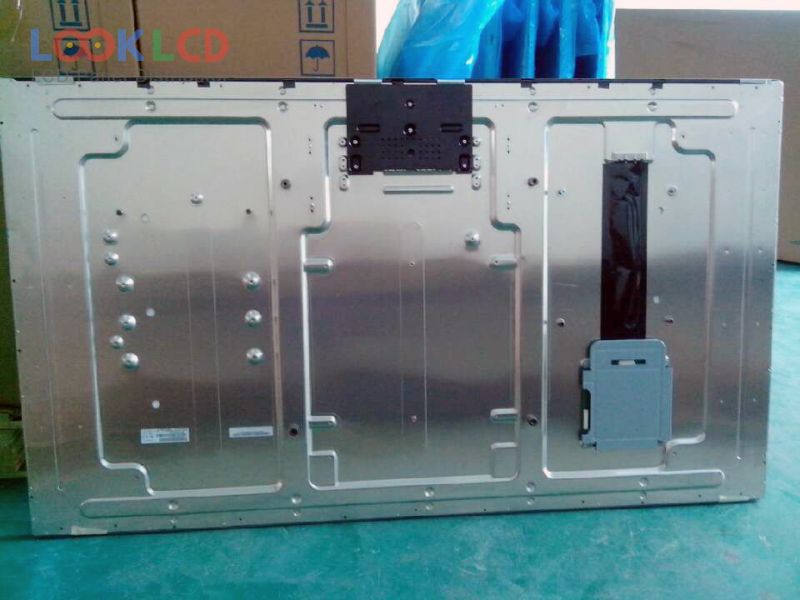

| Broj dijela | T546HW04 V3 |
| Marka | AUO |
| Veličina | 55 |
| Primjena | LCTV |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 380 |
| CR | 4000:1 |
| Boje | 16.7M/1.07B |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | T546HW04 V3 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 55 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | AMVA3, Normally Black, Transmissive |
| aktivno područje | 1209.6×680.4 mm |
| obris | 1255.6×726.4 mm |
| površinski | Antiglare (Haze 2%) |
| svjetlina | 380 cd/m² (Typ.) |
| omjer kontrasta | 4000:1 (Typ.) |
| boje prikaza | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 5.5 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 120Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (4 ch, 8/10-bit), 92 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
