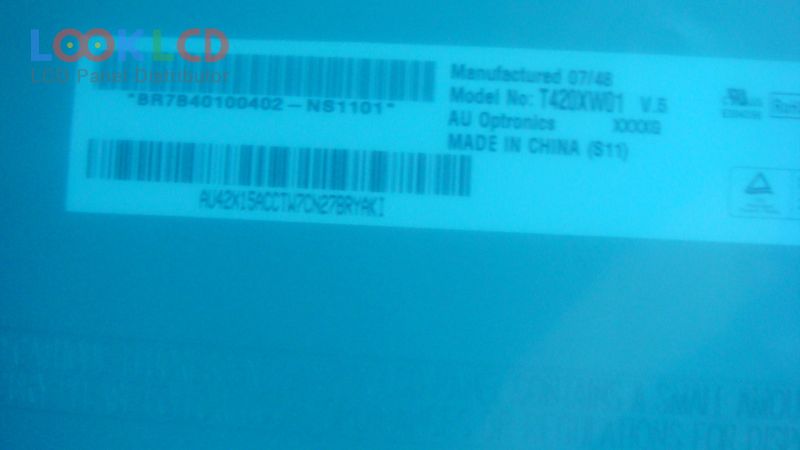

| Broj dijela | T420XW01 V5 |
| Marka | AUO |
| Veličina | 42 |
| Primjena | LCTV |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 1500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | T420XW01 V5 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 42 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | AMVA, Normally Black, Transmissive |
| aktivno područje | 930.25×523.01 mm |
| obris | 983×576 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 1500:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 15/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 20 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (1 ch, 8-bit), 30 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | LCTV |
