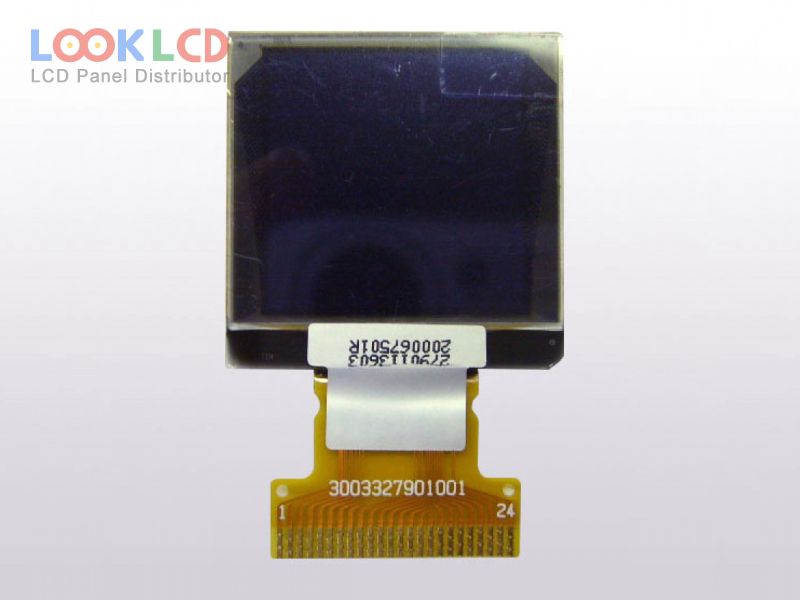

| Broj dijela | RGC11096096YR000 |
| Marka | RiTdisplay |
| Veličina | 1.1 |
| Primjena | IA |
| Rezolucija | 96×96 |
| Sastav | OLED |
| Svjetlina | 80 |
| CR | 2000:1 |
| Boje | Mono(Yellow) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | RiTdisplay |
| panelni model | RGC11096096YR000 |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 1.1 inch |
| rezolucija | 96×96 |
| aktivno područje | 20.14×20.14 mm |
| obris | 27×27×1.71 mm |
| površinski | Antiglare |
| svjetlina | 80 cd/m² (Typ.) |
| omjer kontrasta | 2000 : 1 (Min.) |
| boje prikaza | Mono(Yellow) |
| kut gledanja | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 105Hz |
| vozač ic | COG Built-in SSD1327 |
| signalno sučelje | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 24 pins |
| ulazni napon | 2.5/3.5/13.0V (Typ.)(VDD/VCI/VCC) |
| primjena | IA |
