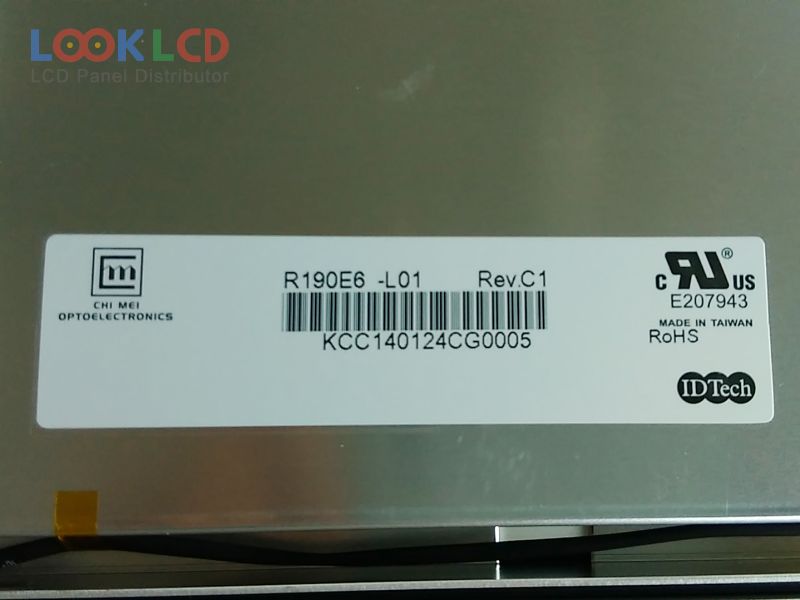

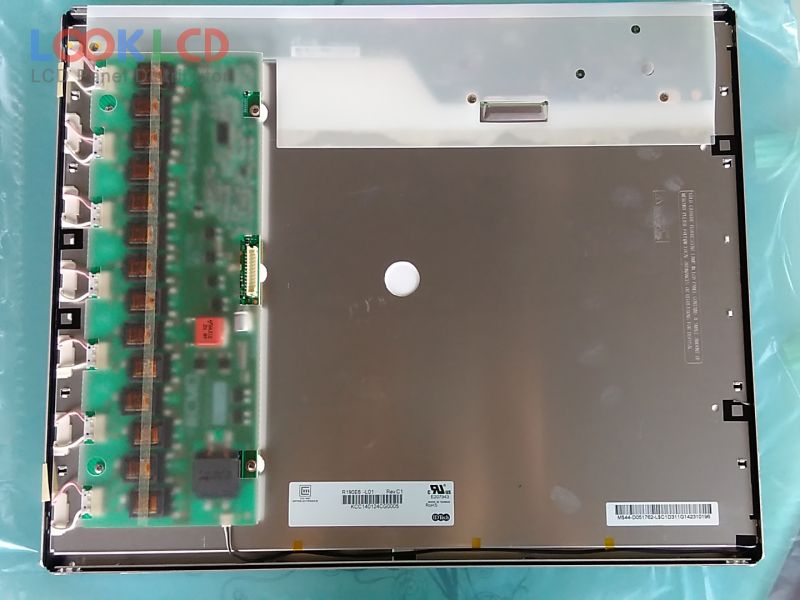

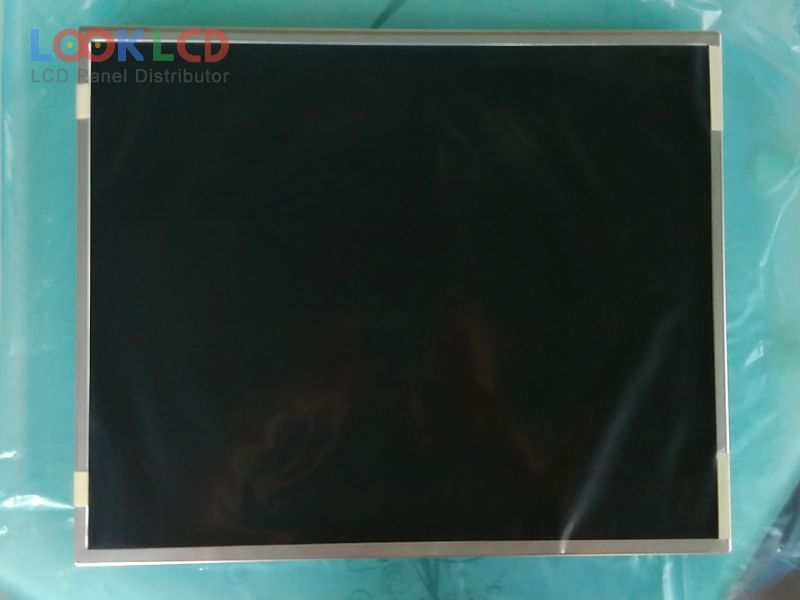

| Broj dijela | R190E6-L01 |
| Marka | Innolux |
| Veličina | 19.0 |
| Primjena | MD |
| Rezolucija | 1280×1024 |
| Sastav | LCM |
| Svjetlina | 650 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | R190E6-L01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 19.0 inch |
| rezolucija | 1280(RGB)×1024 , SXGA |
| način prikaza | DD-IPS, Normally Black, Transmissive |
| aktivno područje | 376.32×301.056 mm |
| obris | 396×324×37 mm |
| površinski | Antiglare |
| svjetlina | 650 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193171% |
| vrijeme odziva | 15/10 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥20)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 14 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | MD |
